K57減速機重量：K57減速機重量27公斤，K57減速機配電機重量分別如下

K57減速機配0.12KW電機重量32.5公斤，K57減速機配0.18KW電機重量33公斤，K57減速機配0.25KW電機重量37公斤，K57減速機配0.37KW電機重量37.5公斤，K57減速機配0.55KW電機重量42公斤，K57減速機配0.75KW電機重量43公斤，K57減速機配1.1KW電機重量47公斤，K57減速機配1.5KW電機重量50公斤，K57減速機配2.2KW電機重量59公斤，K57減速機配3KW電機重量62公斤，K57減速機配4KW電機重量73公斤。直角減速機

K57減速機加油量：可加礦物油

K57減速機M1安裝加1.1升，K57減速機M2安裝加2.2升，K57減速機M3安裝加2.2升，K57減速機M4安裝加2.8升，K57減速機M5安裝加2.3升，K57減速機M6安裝加2.1升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

K57減速機實物圖：圖一為K57臥式安裝螺旋錐齒輪減速電機，圖二KF57立式安裝實心軸輸出螺旋錐齒輪減速電機，圖三為KA57臥式安裝空心軸螺旋錐齒輪減速電機，圖四為KAF57立式安裝直角空心軸螺旋錐齒輪減速機。

K57減速機型號表示方法：

K57減速機型號結構K57-B4KW-4P-減速比-安裝方式-接線盒位置。

K57減速機性能參數表結構說明：RS逆止器，V強制冷卻風扇，C防雨罩，Input Configuration代表輸入配置，TF電機熱保護裝置，K57、KF57、KA57、KAF57減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置帶自鎖功能。

K57減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向?yàn)?從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

K57減速機結構圖：

K57減速機參數：

K57減速機電機可配單相/直流/變頻/剎車/防爆/伺服/交流/三相電機K57配0.12KW，K57配0.18KW，K57配0.25KW，K57配0.37KW，K57配0.55KW，K57配0.75KW，K57配1.1KW，K57配1.5KW，K57配2.2KW，K57配3KW，K57配4KW。

K57減速機減速比145.14比，123.85比，108.29比，102.88比，90.26比，76.56比，69.12比，60.81比，57.42比，48.89比，44.43比，38.49比，35.70比，30.28比，27.34比，24.05比，22.71比，19.34比，17.57比，15.22比，13.25比，11.92比，11.26比，9.59比，8.71比，7.55比，6.57比，4.69比。

K57減速機輸出轉數9.6轉，11轉，13轉，14轉，16轉，18轉，20轉，23轉，24轉，29轉，32轉，36轉，39轉，46轉，51轉，58轉，62轉，72轉，80轉，92轉，106轉，117轉，124轉，146轉，161轉，185轉，213轉，299轉。（以上轉數均為四級電機算出的，可用2P/6P/8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

K57減速機輸出扭矩7630N.m，7300N.m，6930N.m，3480N.m，6280N.m，5910N.m，5740N.m，5430N.m，5190N.m，5150N.m，4990N.m，4650N.m，4520N.m，4360N.m，4180N.m，3800N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

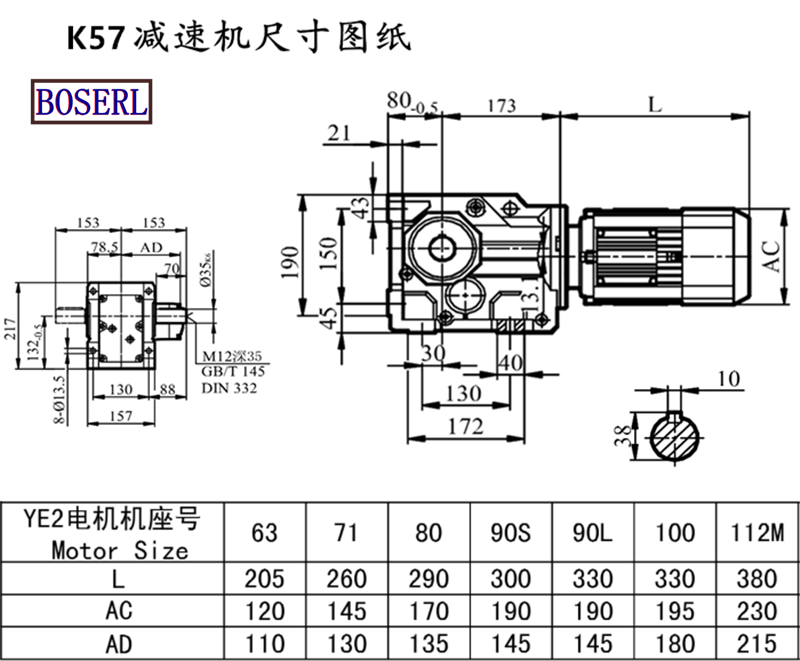

K57減速機尺寸圖紙：高217*寬231.5（帶輸出軸）*長253K系列減速機

K57減速機型號：K57AQA80,K57AQA100,K57AQA115,K57AQA140,K57AQA160,K57AQA190,K57AQH80,K57AQH100,K57AQH115,K57AQH140,K57AQH160,K57AQH190,JRTK57-Y0.12KW,JRTK57-Y0.18KW,JRTK57-Y0.25KW,JRTK57-Y0.37KW,JRTK57-Y0.55KW,JRTK57-Y0.75KW,JRTK57-Y1.1KW,JRTK57-Y1.5KW,JRTK57-Y100M4,JRTK57-Y112M4,JRTK57-Y2.2KW,JRTK57-Y3KW,JRTK57-Y4KW,JRTK57-Y63M4,JRTK57-Y71M4,JRTK57-Y80M4,JRTK57-Y90M4,JRTK57-YEJ100M4,JRTK57-YEJ112M4,JRTK57-YEJ63M4,JRTK57-YEJ71M4,JRTK57-YEJ80M4,JRTK57-YEJ90M4,JRTK57-YS100M4,JRTK57-YS112M4,JRTK57-YS63M4,JRTK57-YS71M4,JRTK57-YS80M4,JRTK57-YS90M4,JRTK57-YVP100M4,JRTK57-YVP112M4,JRTK57-YVP63M4,JRTK57-YVP71M4,JRTK57-YVP80M4,JRTK57-YVP90M4,JRTK57-YVPEJ100M4,JRTK57-YVPEJ112M4,JRTK57-YVPEJ63M4,JRTK57-YVPEJ71M4,JRTK57-YVPEJ80M4,JRTK57-YVPEJ90M4,EWK57-Y0.12KW,EWK57-Y0.18KW,EWK57-Y0.25KW,EWK57-Y0.37KW,EWK57-Y0.55KW,EWK57-Y0.75KW,EWK57-Y1.1KW,EWK57-Y1.5KW,EWK57-Y100M4,EWK57-Y112M4,EWK57-Y2.2KW,EWK57-Y3KW,EWK57-Y4KW,EWK57-Y63M4,EWK57-Y71M4,EWK57-Y80M4,EWK57-Y90M4,EWK57-YEJ100M4,EWK57-YEJ112M4,EWK57-YEJ63M4,EWK57-YEJ71M4,EWK57-YEJ80M4,EWK57-YEJ90M4,EWK57-YS100M4,EWK57-YS112M4,EWK57-YS63M4,EWK57-YS71M4,EWK57-YS80M4,EWK57-YS90M4,EWK57-YVP100M4,EWK57-YVP112M4,EWK57-YVP63M4,EWK57-YVP71M4,EWK57-YVP80M4,EWK57-YVP90M4,EWK57-YVPEJ100M4,EWK57-YVPEJ112M4,EWK57-YVPEJ63M4,EWK57-YVPEJ71M4,EWK57-YVPEJ80M4,EWK57-YVPEJ90M4,SLK57-Y0.12KW,SLK57-Y0.18KW,SLK57-Y0.25KW,SLK57-Y0.37KW,SLK57-Y0.55KW,SLK57-Y0.75KW,SLK57-Y1.1KW,SLK57-Y1.5KW,SLK57-Y100M4,SLK57-Y112M4,SLK57-Y2.2KW,SLK57-Y3KW,SLK57-Y4KW,SLK57-Y63M4,SLK57-Y71M4,SLK57-Y80M4,SLK57-Y90M4,SLK57-YEJ100M4,SLK57-YEJ112M4,SLK57-YEJ63M4,SLK57-YEJ71M4,SLK57-YEJ80M4,SLK57-YEJ90M4,SLK57-YS100M4,SLK57-YS112M4,SLK57-YS63M4,SLK57-YS71M4,SLK57-YS80M4,SLK57-YS90M4,SLK57-YVP100M4,SLK57-YVP112M4,SLK57-YVP63M4,SLK57-YVP71M4,SLK57-YVP80M4,SLK57-YVP90M4,SLK57-YVPEJ100M4,SLK57-YVPEJ112M4,SLK57-YVPEJ63M4,SLK57-YVPEJ71M4,SLK57-YVPEJ80M4,SLK57-YVPEJ90M4,DSZK57-Y0.12KW,DSZK57-Y0.18KW,DSZK57-Y0.25KW,DSZK57-Y0.37KW,DSZK57-Y0.55KW,DSZK57-Y0.75KW,DSZK57-Y1.1KW,DSZK57-Y1.5KW,DSZK57-Y100M4,DSZK57-Y112M4,DSZK57-Y2.2KW,DSZK57-Y3KW,DSZK57-Y4KW,DSZK57-Y63M4,DSZK57-Y71M4,DSZK57-Y80M4,DSZK57-Y90M4,DSZK57-YEJ100M4,DSZK57-YEJ112M4,DSZK57-YEJ63M4,DSZK57-YEJ71M4,DSZK57-YEJ80M4,DSZK57-YEJ90M4,DSZK57-YS100M4,DSZK57-YS112M4,DSZK57-YS63M4,DSZK57-YS71M4,DSZK57-YS80M4,DSZK57-YS90M4,DSZK57-YVP100M4,DSZK57-YVP112M4,DSZK57-YVP63M4,DSZK57-YVP71M4,DSZK57-YVP80M4,DSZK57-YVP90M4,DSZK57-YVPEJ100M4,DSZK57-YVPEJ112M4,DSZK57-YVPEJ63M4,DSZK57-YVPEJ71M4,DSZK57-YVPEJ80M4,DSZK57-YVPEJ90M4,BK57-Y0.12KW,BK57-Y0.18KW,BK57-Y0.25KW,BK57-Y0.37KW,BK57-Y0.55KW,BK57-Y0.75KW,BK57-Y1.1KW,BK57-Y1.5KW,BK57-Y100M4,BK57-Y112M4,BK57-Y2.2KW,BK57-Y3KW,BK57-Y4KW,BK57-Y63M4,BK57-Y71M4,BK57-Y80M4,BK57-Y90M4,BK57-YEJ100M4,BK57-YEJ112M4,BK57-YEJ63M4,BK57-YEJ71M4,BK57-YEJ80M4,BK57-YEJ90M4,BK57-YS100M4,BK57-YS112M4,BK57-YS63M4,BK57-YS71M4,BK57-YS80M4,BK57-YS90M4,BK57-YVP100M4,BK57-YVP112M4,BK57-YVP63M4,BK57-YVP71M4,BK57-YVP80M4,BK57-YVP90M4,BK57-YVPEJ100M4,BK57-YVPEJ112M4,BK57-YVPEJ63M4,BK57-YVPEJ71M4,BK57-YVPEJ80M4,BK57-YVPEJ90M4,GK57-Y0.12KW,GK57-Y0.18KW,GK57-Y0.25KW,GK57-Y0.37KW,GK57-Y0.55KW,GK57-Y0.75KW,GK57-Y1.1KW,GK57-Y1.5KW,GK57-Y100M4,GK57-Y112M4,GK57-Y2.2KW,GK57-Y3KW,GK57-Y4KW,GK57-Y63M4,GK57-Y71M4,GK57-Y80M4,GK57-Y90M4,GK57-YEJ100M4,GK57-YEJ112M4,GK57-YEJ63M4,GK57-YEJ71M4,GK57-YEJ80M4,GK57-YEJ90M4,GK57-YS100M4,GK57-YS112M4,GK57-YS63M4,GK57-YS71M4,GK57-YS80M4,GK57-YS90M4,GK57-YVP100M4,GK57-YVP112M4,GK57-YVP63M4,GK57-YVP71M4,GK57-YVP80M4,GK57-YVP90M4,GK57-YVPEJ100M4,GK57-YVPEJ112M4,GK57-YVPEJ63M4,GK57-YVPEJ71M4,GK57-YVPEJ80M4,GK57-YVPEJ90M4,KC57-Y0.12KW,KC57-Y0.18KW,KC57-Y0.25KW,KC57-Y0.37KW,KC57-Y0.55KW,KC57-Y0.75KW,KC57-Y1.1KW,KC57-Y1.5KW,KC57-Y100M4,KC57-Y112M4,KC57-Y2.2KW,KC57-Y3KW,KC57-Y4KW,KC57-Y63M4,KC57-Y71M4,KC57-Y80M4,KC57-Y90M4,KC57-YEJ100M4,KC57-YEJ112M4,KC57-YEJ63M4,KC57-YEJ71M4,KC57-YEJ80M4,KC57-YEJ90M4,KC57-YS100M4,KC57-YS112M4,KC57-YS63M4,KC57-YS71M4,KC57-YS80M4,KC57-YS90M4,KC57-YVP100M4,KC57-YVP112M4,KC57-YVP63M4,KC57-YVP71M4,KC57-YVP80M4,KC57-YVP90M4,KC57-YVPEJ100M4,KC57-YVPEJ112M4,KC57-YVPEJ63M4,KC57-YVPEJ71M4,KC57-YVPEJ80M4,KC57-YVPEJ90M4,MTJ57-Y0.12KW,MTJ57-Y0.18KW,MTJ57-Y0.25KW,MTJ57-Y0.37KW,MTJ57-Y0.55KW,MTJ57-Y0.75KW,MTJ57-Y1.1KW,MTJ57-Y1.5KW,MTJ57-Y100M4,MTJ57-Y112M4,MTJ57-Y2.2KW,MTJ57-Y3KW,MTJ57-Y4KW,MTJ57-Y63M4,MTJ57-Y71M4,MTJ57-Y80M4,MTJ57-Y90M4,MTJ57-YEJ100M4,MTJ57-YEJ112M4,MTJ57-YEJ63M4,MTJ57-YEJ71M4,MTJ57-YEJ80M4,MTJ57-YEJ90M4,MTJ57-YS100M4,MTJ57-YS112M4,MTJ57-YS63M4,MTJ57-YS71M4,MTJ57-YS80M4,MTJ57-YS90M4,MTJ57-YVP100M4,MTJ57-YVP112M4,MTJ57-YVP63M4,MTJ57-YVP71M4,MTJ57-YVP80M4,MTJ57-YVP90M4,MTJ57-YVPEJ100M4,MTJ57-YVPEJ112M4,MTJ57-YVPEJ63M4,MTJ57-YVPEJ71M4,MTJ57-YVPEJ80M4,MTJ57-YVPEJ90M4,WXK57-WSS0.12KW,WXK57-WSS0.18KW,WXK57-WSS0.25KW,WXK57-WSS0.37KW,WXK57-WSS0.55KW,WXK57-WSS0.75KW,WXK57-WSS1.1KW,WXK57-WSS1.5KW,WXK57-WSS100M4,WXK57-WSS112M4,WXK57-WSS2.2KW,WXK57-WSS3KW,WXK57-WSS4KW,WXK57-WSS63M4,WXK57-WSS71M4,WXK57-WSS80M4,WXK57-WSS90M4,WXK57-WSSB100M4,WXK57-WSSB112M4,WXK57-WSSB63M4,WXK57-WSSB71M4,WXK57-WSSB80M4,WXK57-WSSB90M4,WXK57-WSSVP100M4,WXK57-WSSVP112M4,WXK57-WSSVP63M4,WXK57-WSSVP71M4,WXK57-WSSVP80M4,WXK57-WSSVP90M4,WXK57-WSSVPB100M4,WXK57-WSSVPB112M4,WXK57-WSSVPB63M4,WXK57-WSSVPB71M4,WXK57-WSSVPB80M4,WXK57-WSSVPB90M4。

K57減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.kingco-glaze.com/product/list-kxiliejiansuji-cn.html

推薦類似型號：K47減速機
