KAF77減速機加電機重量：

KAF77減速機加0.37KW電機重量70.5KG，KAF77減速機加0.55KW電機重量75KG，KAF77減速機加0.75KW電機重量76KG，KAF77減速機加1.1KW電機重量80KG，KAF77減速機加1.5KW電機重量83KG，KAF77減速機加2.2KW電機重量92KG，KAF77減速機加3KW電機重量95KG，KAF77減速機加4KW電機重量106KG，KAF77減速機加5.5KW電機重量120KG，KAF77減速機加7.5KW電機重量133KG，KAF77減速機加11KW電機重量175KG。直角減速機

KAF77減速機加油量：可加齒輪潤滑油

KAF77減速機M4安裝形式加6L，KAF77減速機M3安裝形式加4.6L，KAF77減速機M2安裝形式加4.1L，KAF77減速機M1安裝形式加2.1L，KAF77減速機M5安裝形式加4.4L，KAF77減速機M6安裝形式加4.4L。規定的加注量為參老值。精確值的變化加級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝形式時，您必須根據改變后的安裝形式相應調整加注潤滑劑。上述中列出了安裝形式M1-M6的減速機相應的標準參考潤滑油注入量值。

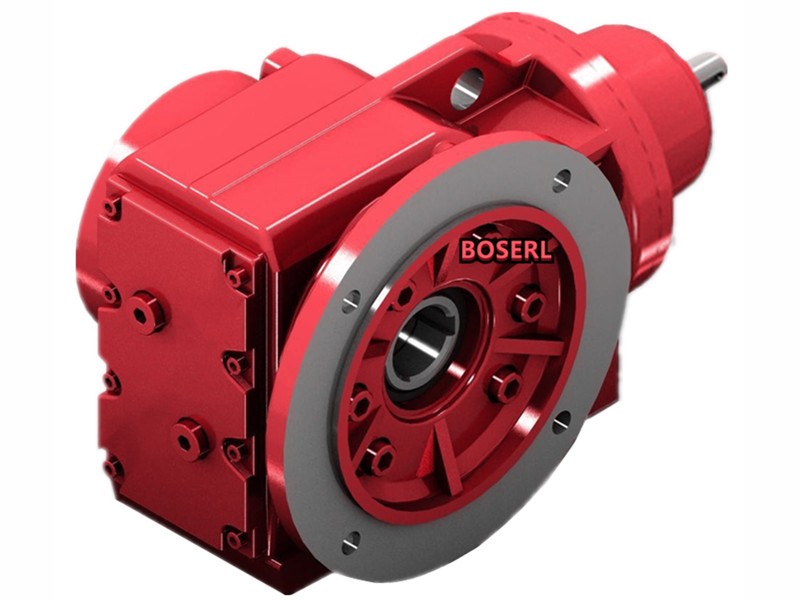

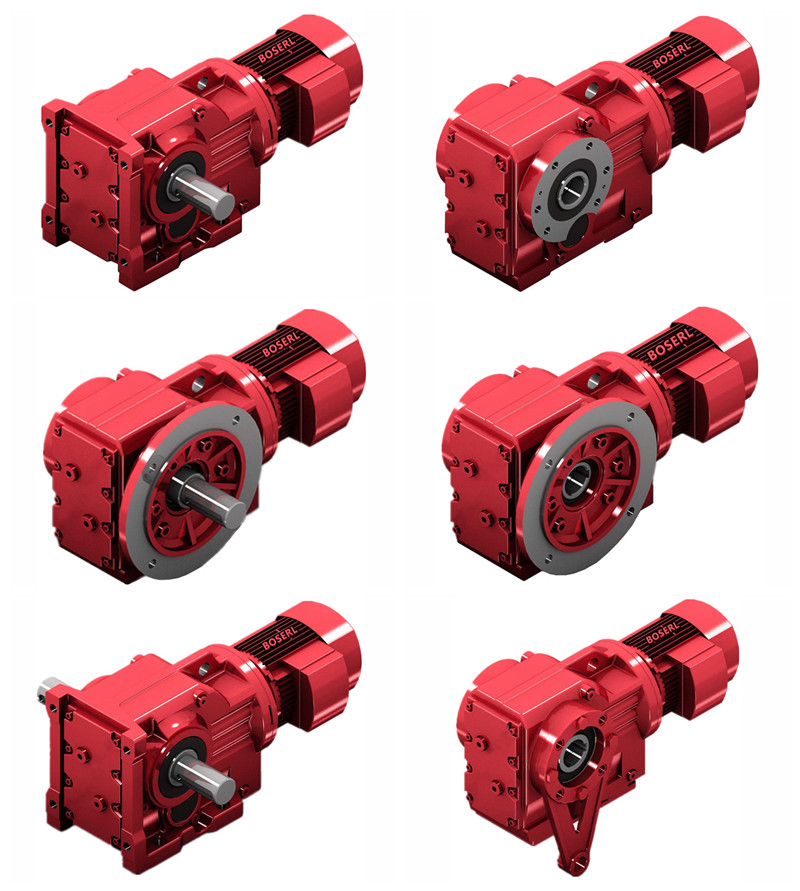

KAF77減速機實物圖：圖一為KAF77立式安裝形式直角空心軸螺旋錐齒輪減速機，圖二K77臥式安裝形式螺旋錐齒輪減速電機，圖三為KF77立式安裝形式實心軸輸出螺旋錐齒輪減速電機，圖四為KA77臥式安裝形式空心軸螺旋錐齒輪減速機。

KAF77減速機型號表示方法：

KAF77減速機型號結構KAF77-B4KW-4P-減速比-安裝形式-接線盒位置。

KAF77減速機性能參數表結構說明：Input Configuration代表輸入加置，C防雨罩，V強制冷卻風扇，RS逆止器，TF電機熱保護裝置，KAF77，K77，KF77，KA77減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置加自鎖功能。二級減速機

KAF77減速機電機接線盒方位說明：本頁附件選型手冊視圖為M1安裝形式，方向為:從電機尾部的風罩向前看。可提供R(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位?？商峁㏒和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

KAF77減速機參數：

KAF77減速機輸出轉數7.3轉，7.8轉，9.1轉，10轉，11轉，12轉，14轉，16轉，18轉，19轉，22轉，24轉，27轉，31轉，35轉，36轉，40轉，45轉，48轉，55轉，61轉，69轉，78轉，88轉，104轉，113轉，129轉，146轉，165轉，193轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

KAF77減速機減速比192.18比，179.37比，154.02比，135.28比，128.52比，113.56比，97.05比，88.97比，78.07比，73.99比，64.75比，58.34比，51.18比，45.16比，40.04比，38.39比，35.2比，30.89比，29.27比，25.62比，23.08比，20.25比，17.87比，15.84比，13.52比，12.36比，10.84比，9.56比，8.48比，7.24比

KAF77減速機輸出扭矩1450N.m，1550N.m，1340N.m，1000N.m，990N.m，940N.m，890N.m，820N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

KAF77減速機電機可加單相，直流，變頻，剎車，防爆，伺服，交流，三相電機KAF77加0.37KW，KAF77加0.55KW，KAF77加0.75KW，KAF77加1.1KW，KAF77加1.5KW，KAF77加2.2KW，KAF77加3KW，KAF77加4KW，KAF77加5.5KW，KAF77加7.5KW，KAF77加11KW。

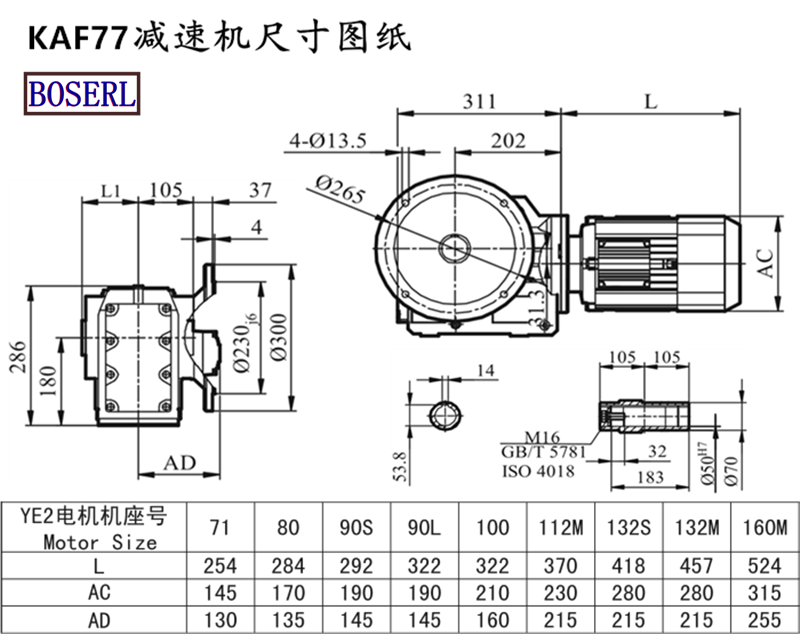

KAF77減速機外觀尺寸：輸出孔直徑Φ50+鍵3.8（可定做），高286*寬243（帶輸出法蘭）*長312

KAF77減速機型號：

KAF77AQA80,KAF77AQA100,KAF77AQA115,KAF77AQA140,KAF77AQA160,KAF77AQA190,KAF77AQH80,KAF77AQH100,KAF77AQH115,KAF77AQH140,KAF77AQH160,KAF77AQH190,JRTKAF77-Y0.25KW,JRTKAF77-Y0.37KW,JRTKAF77-Y0.55KW,JRTKAF77-Y0.75KW,JRTKAF77-Y1.1KW,JRTKAF77-Y1.5KW,JRTKAF77-Y100M4,JRTKAF77-Y112M4,JRTKAF77-Y11KW,JRTKAF77-Y132M4,JRTKAF77-Y160M4,JRTKAF77-Y2.2KW,JRTKAF77-Y3KW,JRTKAF77-Y4KW,JRTKAF77-Y5.5KW,JRTKAF77-Y7.5KW,JRTKAF77-Y71M4,JRTKAF77-Y80M4,JRTKAF77-Y90M4,JRTKAF77-YEJ100M4,JRTKAF77-YEJ112M4,JRTKAF77-YEJ132M4,JRTKAF77-YEJ160M4,JRTKAF77-YEJ71M4,JRTKAF77-YEJ80M4,JRTKAF77-YEJ90M4,JRTKAF77-YS100M4,JRTKAF77-YS112M4,JRTKAF77-YS132M4,JRTKAF77-YS160M4,JRTKAF77-YS71M4,JRTKAF77-YS80M4,JRTKAF77-YS90M4,JRTKAF77-YVP100M4,JRTKAF77-YVP112M4,JRTKAF77-YVP132M4,JRTKAF77-YVP160M4,JRTKAF77-YVP71M4,JRTKAF77-YVP80M4,JRTKAF77-YVP90M4,JRTKAF77-YVPEJ100M4,JRTKAF77-YVPEJ112M4,JRTKAF77-YVPEJ132M4,JRTKAF77-YVPEJ160M4,JRTKAF77-YVPEJ71M4,JRTKAF77-YVPEJ80M4,JRTKAF77-YVPEJ90M4,EWKAF77-Y0.25KW,EWKAF77-Y0.37KW,EWKAF77-Y0.55KW,EWKAF77-Y0.75KW,EWKAF77-Y1.1KW,EWKAF77-Y1.5KW,EWKAF77-Y100M4,EWKAF77-Y112M4,EWKAF77-Y11KW,EWKAF77-Y132M4,EWKAF77-Y160M4,EWKAF77-Y2.2KW,EWKAF77-Y3KW,EWKAF77-Y4KW,EWKAF77-Y5.5KW,EWKAF77-Y7.5KW,EWKAF77-Y71M4,EWKAF77-Y80M4,EWKAF77-Y90M4,EWKAF77-YEJ100M4,EWKAF77-YEJ112M4,EWKAF77-YEJ132M4,EWKAF77-YEJ160M4,EWKAF77-YEJ71M4,EWKAF77-YEJ80M4,EWKAF77-YEJ90M4,EWKAF77-YS100M4,EWKAF77-YS112M4,EWKAF77-YS132M4,EWKAF77-YS160M4,EWKAF77-YS71M4,EWKAF77-YS80M4,EWKAF77-YS90M4,EWKAF77-YVP100M4,EWKAF77-YVP112M4,EWKAF77-YVP132M4,EWKAF77-YVP160M4,EWKAF77-YVP71M4,EWKAF77-YVP80M4,EWKAF77-YVP90M4,EWKAF77-YVPEJ100M4,EWKAF77-YVPEJ112M4,EWKAF77-YVPEJ132M4,EWKAF77-YVPEJ160M4,EWKAF77-YVPEJ71M4,EWKAF77-YVPEJ80M4,EWKAF77-YVPEJ90M4,SLKAF77-Y0.25KW,SLKAF77-Y0.37KW,SLKAF77-Y0.55KW,SLKAF77-Y0.75KW,SLKAF77-Y1.1KW,SLKAF77-Y1.5KW,SLKAF77-Y100M4,SLKAF77-Y112M4,SLKAF77-Y11KW,SLKAF77-Y132M4,SLKAF77-Y160M4,SLKAF77-Y2.2KW,SLKAF77-Y3KW,SLKAF77-Y4KW,SLKAF77-Y5.5KW,SLKAF77-Y7.5KW,SLKAF77-Y71M4,SLKAF77-Y80M4,SLKAF77-Y90M4,SLKAF77-YEJ100M4,SLKAF77-YEJ112M4,SLKAF77-YEJ132M4,SLKAF77-YEJ160M4,SLKAF77-YEJ71M4,SLKAF77-YEJ80M4,SLKAF77-YEJ90M4,SLKAF77-YS100M4,SLKAF77-YS112M4,SLKAF77-YS132M4,SLKAF77-YS160M4,SLKAF77-YS71M4,SLKAF77-YS80M4,SLKAF77-YS90M4,SLKAF77-YVP100M4,SLKAF77-YVP112M4,SLKAF77-YVP132M4,SLKAF77-YVP160M4,SLKAF77-YVP71M4,SLKAF77-YVP80M4,SLKAF77-YVP90M4,SLKAF77-YVPEJ100M4,SLKAF77-YVPEJ112M4,SLKAF77-YVPEJ132M4,SLKAF77-YVPEJ160M4,SLKAF77-YVPEJ71M4,SLKAF77-YVPEJ80M4,SLKAF77-YVPEJ90M4,DSZKAF77-Y0.25KW,DSZKAF77-Y0.37KW,DSZKAF77-Y0.55KW,DSZKAF77-Y0.75KW,DSZKAF77-Y1.1KW,DSZKAF77-Y1.5KW,DSZKAF77-Y100M4,DSZKAF77-Y112M4,DSZKAF77-Y11KW,DSZKAF77-Y132M4,DSZKAF77-Y160M4,DSZKAF77-Y2.2KW,DSZKAF77-Y3KW,DSZKAF77-Y4KW,DSZKAF77-Y5.5KW,DSZKAF77-Y7.5KW,DSZKAF77-Y71M4,DSZKAF77-Y80M4,DSZKAF77-Y90M4,DSZKAF77-YEJ100M4,DSZKAF77-YEJ112M4,DSZKAF77-YEJ132M4,DSZKAF77-YEJ160M4,DSZKAF77-YEJ71M4,DSZKAF77-YEJ80M4,DSZKAF77-YEJ90M4,DSZKAF77-YS100M4,DSZKAF77-YS112M4,DSZKAF77-YS132M4,DSZKAF77-YS160M4,DSZKAF77-YS71M4,DSZKAF77-YS80M4,DSZKAF77-YS90M4,DSZKAF77-YVP100M4,DSZKAF77-YVP112M4,DSZKAF77-YVP132M4,DSZKAF77-YVP160M4,DSZKAF77-YVP71M4,DSZKAF77-YVP80M4,DSZKAF77-YVP90M4,DSZKAF77-YVPEJ100M4,DSZKAF77-YVPEJ112M4,DSZKAF77-YVPEJ132M4,DSZKAF77-YVPEJ160M4,DSZKAF77-YVPEJ71M4,DSZKAF77-YVPEJ80M4,DSZKAF77-YVPEJ90M4,BKAF77-Y0.25KW,BKAF77-Y0.37KW,BKAF77-Y0.55KW,BKAF77-Y0.75KW,BKAF77-Y1.1KW,BKAF77-Y1.5KW,BKAF77-Y100M4,BKAF77-Y112M4,BKAF77-Y11KW,BKAF77-Y132M4,BKAF77-Y160M4,BKAF77-Y2.2KW,BKAF77-Y3KW,BKAF77-Y4KW,BKAF77-Y5.5KW,BKAF77-Y7.5KW,BKAF77-Y71M4,BKAF77-Y80M4,BKAF77-Y90M4,BKAF77-YEJ100M4,BKAF77-YEJ112M4,BKAF77-YEJ132M4,BKAF77-YEJ160M4,BKAF77-YEJ71M4,BKAF77-YEJ80M4,BKAF77-YEJ90M4,BKAF77-YS100M4,BKAF77-YS112M4,BKAF77-YS132M4,BKAF77-YS160M4,BKAF77-YS71M4,BKAF77-YS80M4,BKAF77-YS90M4,BKAF77-YVP100M4,BKAF77-YVP112M4,BKAF77-YVP132M4,BKAF77-YVP160M4,BKAF77-YVP71M4,BKAF77-YVP80M4,BKAF77-YVP90M4,BKAF77-YVPEJ100M4,BKAF77-YVPEJ112M4,BKAF77-YVPEJ132M4,BKAF77-YVPEJ160M4,BKAF77-YVPEJ71M4,BKAF77-YVPEJ80M4,BKAF77-YVPEJ90M4,GKAF77-Y0.25KW,GKAF77-Y0.37KW,GKAF77-Y0.55KW,GKAF77-Y0.75KW,GKAF77-Y1.1KW,GKAF77-Y1.5KW,GKAF77-Y100M4,GKAF77-Y112M4,GKAF77-Y11KW,GKAF77-Y132M4,GKAF77-Y160M4,GKAF77-Y2.2KW,GKAF77-Y3KW,GKAF77-Y4KW,GKAF77-Y5.5KW,GKAF77-Y7.5KW,GKAF77-Y71M4,GKAF77-Y80M4,GKAF77-Y90M4,GKAF77-YEJ100M4,GKAF77-YEJ112M4,GKAF77-YEJ132M4,GKAF77-YEJ160M4,GKAF77-YEJ71M4,GKAF77-YEJ80M4,GKAF77-YEJ90M4,GKAF77-YS100M4,GKAF77-YS112M4,GKAF77-YS132M4,GKAF77-YS160M4,GKAF77-YS71M4,GKAF77-YS80M4,GKAF77-YS90M4,GKAF77-YVP100M4,GKAF77-YVP112M4,GKAF77-YVP132M4,GKAF77-YVP160M4,GKAF77-YVP71M4,GKAF77-YVP80M4,GKAF77-YVP90M4,GKAF77-YVPEJ100M4,GKAF77-YVPEJ112M4,GKAF77-YVPEJ132M4,GKAF77-YVPEJ160M4,GKAF77-YVPEJ71M4,GKAF77-YVPEJ80M4,GKAF77-YVPEJ90M4,KCAF77-Y0.25KW,KCAF77-Y0.37KW,KCAF77-Y0.55KW,KCAF77-Y0.75KW,KCAF77-Y1.1KW,KCAF77-Y1.5KW,KCAF77-Y100M4,KCAF77-Y112M4,KCAF77-Y11KW,KCAF77-Y132M4,KCAF77-Y160M4,KCAF77-Y2.2KW,KCAF77-Y3KW,KCAF77-Y4KW,KCAF77-Y5.5KW,KCAF77-Y7.5KW,KCAF77-Y71M4,KCAF77-Y80M4,KCAF77-Y90M4,KCAF77-YEJ100M4,KCAF77-YEJ112M4,KCAF77-YEJ132M4,KCAF77-YEJ160M4,KCAF77-YEJ71M4,KCAF77-YEJ80M4,KCAF77-YEJ90M4,KCAF77-YS100M4,KCAF77-YS112M4,KCAF77-YS132M4,KCAF77-YS160M4,KCAF77-YS71M4,KCAF77-YS80M4,KCAF77-YS90M4,KCAF77-YVP100M4,KCAF77-YVP112M4,KCAF77-YVP132M4,KCAF77-YVP160M4,KCAF77-YVP71M4,KCAF77-YVP80M4,KCAF77-YVP90M4,KCAF77-YVPEJ100M4,KCAF77-YVPEJ112M4,KCAF77-YVPEJ132M4,KCAF77-YVPEJ160M4,KCAF77-YVPEJ71M4,KCAF77-YVPEJ80M4,KCAF77-YVPEJ90M4,MTJAF77-Y0.25KW,MTJAF77-Y0.37KW,MTJAF77-Y0.55KW,MTJAF77-Y0.75KW,MTJAF77-Y1.1KW,MTJAF77-Y1.5KW,MTJAF77-Y100M4,MTJAF77-Y112M4,MTJAF77-Y11KW,MTJAF77-Y132M4,MTJAF77-Y160M4,MTJAF77-Y2.2KW,MTJAF77-Y3KW,MTJAF77-Y4KW,MTJAF77-Y5.5KW,MTJAF77-Y7.5KW,MTJAF77-Y71M4,MTJAF77-Y80M4,MTJAF77-Y90M4,MTJAF77-YEJ100M4,MTJAF77-YEJ112M4,MTJAF77-YEJ132M4,MTJAF77-YEJ160M4,MTJAF77-YEJ71M4,MTJAF77-YEJ80M4,MTJAF77-YEJ90M4,MTJAF77-YS100M4,MTJAF77-YS112M4,MTJAF77-YS132M4,MTJAF77-YS160M4,MTJAF77-YS71M4,MTJAF77-YS80M4,MTJAF77-YS90M4,MTJAF77-YVP100M4,MTJAF77-YVP112M4,MTJAF77-YVP132M4,MTJAF77-YVP160M4,MTJAF77-YVP71M4,MTJAF77-YVP80M4,MTJAF77-YVP90M4,MTJAF77-YVPEJ100M4,MTJAF77-YVPEJ112M4,MTJAF77-YVPEJ132M4,MTJAF77-YVPEJ160M4,MTJAF77-YVPEJ71M4,MTJAF77-YVPEJ80M4,MTJAF77-YVPEJ90M4,WXKAF77-WSS0.25KW,WXKAF77-WSS0.37KW,WXKAF77-WSS0.55KW,WXKAF77-WSS0.75KW,WXKAF77-WSS1.1KW,WXKAF77-WSS1.5KW,WXKAF77-WSS100M4,WXKAF77-WSS112M4,WXKAF77-WSS11KW,WXKAF77-WSS132M4,WXKAF77-WSS160M4,WXKAF77-WSS2.2KW,WXKAF77-WSS3KW,WXKAF77-WSS4KW,WXKAF77-WSS5.5KW,WXKAF77-WSS7.5KW,WXKAF77-WSS71M4,WXKAF77-WSS80M4,WXKAF77-WSS90M4,WXKAF77-WSSB100M4,WXKAF77-WSSB112M4,WXKAF77-WSSB132M4,WXKAF77-WSSB160M4,WXKAF77-WSSB71M4,WXKAF77-WSSB80M4,WXKAF77-WSSB90M4,WXKAF77-WSSVP100M4,WXKAF77-WSSVP112M4,WXKAF77-WSSVP132M4,WXKAF77-WSSVP160M4,WXKAF77-WSSVP71M4,WXKAF77-WSSVP80M4,WXKAF77-WSSVP90M4,WXKAF77-WSSVPB100M4,WXKAF77-WSSVPB112M4,WXKAF77-WSSVPB132M4,WXKAF77-WSSVPB160M4,WXKAF77-WSSVPB71M4,WXKAF77-WSSVPB80M4,WXKAF77-WSSVPB90M4。

KAF77減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.kingco-glaze.com/product/list-kafxiliejiansuji-cn.html

推薦類似型號：K77減速機
