RF87減速機重量：RF87減速機重量65公斤，RF87減速機帶電機重量分別如下：

RF87減速機帶0.55KW電機重量80公斤,RF87減速機帶0.75KW電機重量81公斤,RF87減速機帶1.1KW電機重量85公斤,RF87減速機帶1.5KW電機重量88公斤,RF87減速機帶2.2KW電機重量97公斤,RF87減速機帶3KW電機重量100公斤,RF87減速機帶4KW電機重量111公斤,RF87減速機帶5.5KW電機重量125公斤,RF87減速機帶7.5KW電機重量138公斤,RF87減速機帶11KW電機重量180公斤,RF87減速機帶15KW電機重量200公斤,RF87減速機帶18.5KW電機重量237公斤,RF87減速機帶22KW電機重量250公斤。RF系列減速機

RF87減速機加油量：可加合成油

RF87減速機M2安裝加6.4、8.1升，RF87減速機M1安裝加2.3、6升，RF87減速機M3安裝加7.2升，RF87減速機M4安裝加7.2升，RF87減速機M5安裝加6.3升，RF87減速機M6安裝加6.5升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。齒輪減速機

RF87減速機實物圖：圖一為RF87法蘭立式安裝斜齒輪減速機，圖二為R87底腳安裝斜齒輪減速機，圖三為RX87減速機不同心臥式底腳安裝，圖四為RXF87減速機不同心立式法蘭安裝。

RF87減速機型號表示方法：

RF87減速機型號結構RF87-B18.5KW-4P-減速比-安裝方式-接線盒位置。

RF87減速機性能參數表結構說明：1/min代表輸出轉數，KW代表電機功率，Nm代表輸出扭矩，i代表減速比，N代表徑向負荷，K代表服務系數，F(xiàn)rame size代表基座規格，Input Configuration代表輸入帶置。

RF87減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1安裝，方向?yàn)?從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。同軸減速機

RF87減速機參數：

RF87減速機電機可帶剎車、變頻、防爆、伺服、交流、直流、三相、單相電機RF87帶0.55KW,RF87帶0.75KW,RF87帶1.1KW,RF87帶1.5KW,RF87帶2.2KW,RF87帶3KW,RF87帶4KW,RF87帶5.5KW,RF87帶7.5KW,RF87帶11KW,RF87帶15KW,RF87帶18.5KW,RF87帶22KW。

RF87減速機輸出轉速5.7轉,6.5轉,6.8轉,7.7轉,9轉,9.8轉,11轉,12轉,14轉,15轉,17轉,19轉,22轉,23轉,27轉,29轉,34轉,38轉,41轉,43轉,45轉,50轉,50轉,60轉,65轉,73轉,82轉,91轉,105轉,117轉,141轉,153轉,170轉,196轉,219轉,264。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

RF87減速機負載扭矩1550N.m,1440N.m,1390N.m,1340N.m,1280N.m,1230N.m,1180N.m,1210N.m,1160N.m,1070N.m,1020N.m,910N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

RF87減速機減速比5.3比,6.39比,7.13比,8.22比,9.14比,9.9比,11.93比,13.33比,15.35比,17.08比,19.1比,21.51比,23.4比,27.84比,27.88比,31.4比,32.66比,34.4比,36.84比,41.74比,47.58比,52.82比,60.35比,63.68比,72.57比,81.92比,93.38比,103.65比,118.43比,124.97比,142.41比,155.34比,181.77比,205.71比,216.54比,246.54比。

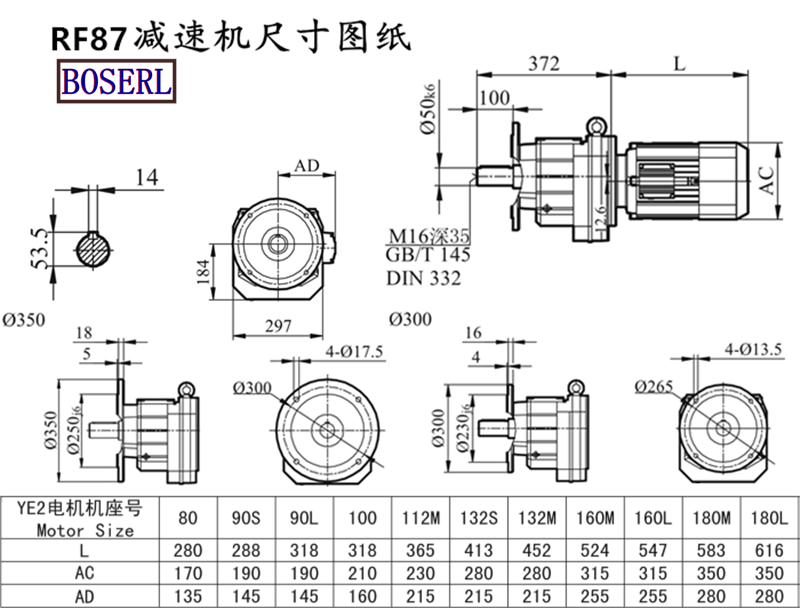

RF87減速機外形尺寸：輸出軸Φ50+鍵3.5（可定做），高295*寬297*長372（帶輸出軸）

RF87減速機型號：RF87AQA80,RF87AQA100,RF87AQA115,RF87AQA140,RF87AQA160,RF87AQA190,RF87AQH80,RF87AQH100,RF87AQH115,RF87AQH140,RF87AQH160,RF87AQH190,JRTRF87-Y0.37KW,JRTRF87-Y0.55KW,JRTRF87-Y0.75KW,JRTRF87-Y1.1KW,JRTRF87-Y1.5KW,JRTRF87-Y100M4,JRTRF87-Y112M4,JRTRF87-Y11KW,JRTRF87-Y132M4,JRTRF87-Y15KW,JRTRF87-Y160M4,JRTRF87-Y18.5KW,JRTRF87-Y180M4,JRTRF87-Y2.2KW,JRTRF87-Y200M4,JRTRF87-Y22KW,JRTRF87-Y30KW,JRTRF87-Y3KW,JRTRF87-Y4KW,JRTRF87-Y5.5KW,JRTRF87-Y7.5KW,JRTRF87-Y71M4,JRTRF87-Y80M4,JRTRF87-Y90M4,JRTRF87-YEJ100M4,JRTRF87-YEJ112M4,JRTRF87-YEJ132M4,JRTRF87-YEJ160M4,JRTRF87-YEJ180M4,JRTRF87-YEJ200M4,JRTRF87-YEJ71M4,JRTRF87-YEJ80M4,JRTRF87-YEJ90M4,JRTRF87-YS100M4,JRTRF87-YS112M4,JRTRF87-YS132M4,JRTRF87-YS160M4,JRTRF87-YS180M4,JRTRF87-YS200M4,JRTRF87-YS71M4,JRTRF87-YS80M4,JRTRF87-YS90M4,JRTRF87-YVP100M4,JRTRF87-YVP112M4,JRTRF87-YVP132M4,JRTRF87-YVP160M4,JRTRF87-YVP180M4,JRTRF87-YVP200M4,JRTRF87-YVP71M4,JRTRF87-YVP80M4,JRTRF87-YVP90M4,JRTRF87-YVPEJ100M4,JRTRF87-YVPEJ112M4,JRTRF87-YVPEJ132M4,JRTRF87-YVPEJ160M4,JRTRF87-YVPEJ180M4,JRTRF87-YVPEJ200M4,JRTRF87-YVPEJ71M4,JRTRF87-YVPEJ80M4,JRTRF87-YVPEJ90M4,EWRF87-Y0.37KW,EWRF87-Y0.55KW,EWRF87-Y0.75KW,EWRF87-Y1.1KW,EWRF87-Y1.5KW,EWRF87-Y100M4,EWRF87-Y112M4,EWRF87-Y11KW,EWRF87-Y132M4,EWRF87-Y15KW,EWRF87-Y160M4,EWRF87-Y18.5KW,EWRF87-Y180M4,EWRF87-Y2.2KW,EWRF87-Y200M4,EWRF87-Y22KW,EWRF87-Y30KW,EWRF87-Y3KW,EWRF87-Y4KW,EWRF87-Y5.5KW,EWRF87-Y7.5KW,EWRF87-Y71M4,EWRF87-Y80M4,EWRF87-Y90M4,EWRF87-YEJ100M4,EWRF87-YEJ112M4,EWRF87-YEJ132M4,EWRF87-YEJ160M4,EWRF87-YEJ180M4,EWRF87-YEJ200M4,EWRF87-YEJ71M4,EWRF87-YEJ80M4,EWRF87-YEJ90M4,EWRF87-YS100M4,EWRF87-YS112M4,EWRF87-YS132M4,EWRF87-YS160M4,EWRF87-YS180M4,EWRF87-YS200M4,EWRF87-YS71M4,EWRF87-YS80M4,EWRF87-YS90M4,EWRF87-YVP100M4,EWRF87-YVP112M4,EWRF87-YVP132M4,EWRF87-YVP160M4,EWRF87-YVP180M4,EWRF87-YVP200M4,EWRF87-YVP71M4,EWRF87-YVP80M4,EWRF87-YVP90M4,EWRF87-YVPEJ100M4,EWRF87-YVPEJ112M4,EWRF87-YVPEJ132M4,EWRF87-YVPEJ160M4,EWRF87-YVPEJ180M4,EWRF87-YVPEJ200M4,EWRF87-YVPEJ71M4,EWRF87-YVPEJ80M4,EWRF87-YVPEJ90M4,SLRF87-Y0.37KW,SLRF87-Y0.55KW,SLRF87-Y0.75KW,SLRF87-Y1.1KW,SLRF87-Y1.5KW,SLRF87-Y100M4,SLRF87-Y112M4,SLRF87-Y11KW,SLRF87-Y132M4,SLRF87-Y15KW,SLRF87-Y160M4,SLRF87-Y18.5KW,SLRF87-Y180M4,SLRF87-Y2.2KW,SLRF87-Y200M4,SLRF87-Y22KW,SLRF87-Y30KW,SLRF87-Y3KW,SLRF87-Y4KW,SLRF87-Y5.5KW,SLRF87-Y7.5KW,SLRF87-Y71M4,SLRF87-Y80M4,SLRF87-Y90M4,SLRF87-YEJ100M4,SLRF87-YEJ112M4,SLRF87-YEJ132M4,SLRF87-YEJ160M4,SLRF87-YEJ180M4,SLRF87-YEJ200M4,SLRF87-YEJ71M4,SLRF87-YEJ80M4,SLRF87-YEJ90M4,SLRF87-YS100M4,SLRF87-YS112M4,SLRF87-YS132M4,SLRF87-YS160M4,SLRF87-YS180M4,SLRF87-YS200M4,SLRF87-YS71M4,SLRF87-YS80M4,SLRF87-YS90M4,SLRF87-YVP100M4,SLRF87-YVP112M4,SLRF87-YVP132M4,SLRF87-YVP160M4,SLRF87-YVP180M4,SLRF87-YVP200M4,SLRF87-YVP71M4,SLRF87-YVP80M4,SLRF87-YVP90M4,SLRF87-YVPEJ100M4,SLRF87-YVPEJ112M4,SLRF87-YVPEJ132M4,SLRF87-YVPEJ160M4,SLRF87-YVPEJ180M4,SLRF87-YVPEJ200M4,SLRF87-YVPEJ71M4,SLRF87-YVPEJ80M4,SLRF87-YVPEJ90M4,DSZRF87-Y0.37KW,DSZRF87-Y0.55KW,DSZRF87-Y0.75KW,DSZRF87-Y1.1KW,DSZRF87-Y1.5KW,DSZRF87-Y100M4,DSZRF87-Y112M4,DSZRF87-Y11KW,DSZRF87-Y132M4,DSZRF87-Y15KW,DSZRF87-Y160M4,DSZRF87-Y18.5KW,DSZRF87-Y180M4,DSZRF87-Y2.2KW,DSZRF87-Y200M4,DSZRF87-Y22KW,DSZRF87-Y30KW,DSZRF87-Y3KW,DSZRF87-Y4KW,DSZRF87-Y5.5KW,DSZRF87-Y7.5KW,DSZRF87-Y71M4,DSZRF87-Y80M4,DSZRF87-Y90M4,DSZRF87-YEJ100M4,DSZRF87-YEJ112M4,DSZRF87-YEJ132M4,DSZRF87-YEJ160M4,DSZRF87-YEJ180M4,DSZRF87-YEJ200M4,DSZRF87-YEJ71M4,DSZRF87-YEJ80M4,DSZRF87-YEJ90M4,DSZRF87-YS100M4,DSZRF87-YS112M4,DSZRF87-YS132M4,DSZRF87-YS160M4,DSZRF87-YS180M4,DSZRF87-YS200M4,DSZRF87-YS71M4,DSZRF87-YS80M4,DSZRF87-YS90M4,DSZRF87-YVP100M4,DSZRF87-YVP112M4,DSZRF87-YVP132M4,DSZRF87-YVP160M4,DSZRF87-YVP180M4,DSZRF87-YVP200M4,DSZRF87-YVP71M4,DSZRF87-YVP80M4,DSZRF87-YVP90M4,DSZRF87-YVPEJ100M4,DSZRF87-YVPEJ112M4,DSZRF87-YVPEJ132M4,DSZRF87-YVPEJ160M4,DSZRF87-YVPEJ180M4,DSZRF87-YVPEJ200M4,DSZRF87-YVPEJ71M4,DSZRF87-YVPEJ80M4,DSZRF87-YVPEJ90M4,BRF87-Y0.37KW,BRF87-Y0.55KW,BRF87-Y0.75KW,BRF87-Y1.1KW,BRF87-Y1.5KW,BRF87-Y100M4,BRF87-Y112M4,BRF87-Y11KW,BRF87-Y132M4,BRF87-Y15KW,BRF87-Y160M4,BRF87-Y18.5KW,BRF87-Y180M4,BRF87-Y2.2KW,BRF87-Y200M4,BRF87-Y22KW,BRF87-Y30KW,BRF87-Y3KW,BRF87-Y4KW,BRF87-Y5.5KW,BRF87-Y7.5KW,BRF87-Y71M4,BRF87-Y80M4,BRF87-Y90M4,BRF87-YEJ100M4,BRF87-YEJ112M4,BRF87-YEJ132M4,BRF87-YEJ160M4,BRF87-YEJ180M4,BRF87-YEJ200M4,BRF87-YEJ71M4,BRF87-YEJ80M4,BRF87-YEJ90M4,BRF87-YS100M4,BRF87-YS112M4,BRF87-YS132M4,BRF87-YS160M4,BRF87-YS180M4,BRF87-YS200M4,BRF87-YS71M4,BRF87-YS80M4,BRF87-YS90M4,BRF87-YVP100M4,BRF87-YVP112M4,BRF87-YVP132M4,BRF87-YVP160M4,BRF87-YVP180M4,BRF87-YVP200M4,BRF87-YVP71M4,BRF87-YVP80M4,BRF87-YVP90M4,BRF87-YVPEJ100M4,BRF87-YVPEJ112M4,BRF87-YVPEJ132M4,BRF87-YVPEJ160M4,BRF87-YVPEJ180M4,BRF87-YVPEJ200M4,BRF87-YVPEJ71M4,BRF87-YVPEJ80M4,BRF87-YVPEJ90M4,GRF87-Y0.37KW,GRF87-Y0.55KW,GRF87-Y0.75KW,GRF87-Y1.1KW,GRF87-Y1.5KW,GRF87-Y100M4,GRF87-Y112M4,GRF87-Y11KW,GRF87-Y132M4,GRF87-Y15KW,GRF87-Y160M4,GRF87-Y18.5KW,GRF87-Y180M4,GRF87-Y2.2KW,GRF87-Y200M4,GRF87-Y22KW,GRF87-Y30KW,GRF87-Y3KW,GRF87-Y4KW,GRF87-Y5.5KW,GRF87-Y7.5KW,GRF87-Y71M4,GRF87-Y80M4,GRF87-Y90M4,GRF87-YEJ100M4,GRF87-YEJ112M4,GRF87-YEJ132M4,GRF87-YEJ160M4,GRF87-YEJ180M4,GRF87-YEJ200M4,GRF87-YEJ71M4,GRF87-YEJ80M4,GRF87-YEJ90M4,GRF87-YS100M4,GRF87-YS112M4,GRF87-YS132M4,GRF87-YS160M4,GRF87-YS180M4,GRF87-YS200M4,GRF87-YS71M4,GRF87-YS80M4,GRF87-YS90M4,GRF87-YVP100M4,GRF87-YVP112M4,GRF87-YVP132M4,GRF87-YVP160M4,GRF87-YVP180M4,GRF87-YVP200M4,GRF87-YVP71M4,GRF87-YVP80M4,GRF87-YVP90M4,GRF87-YVPEJ100M4,GRF87-YVPEJ112M4,GRF87-YVPEJ132M4,GRF87-YVPEJ160M4,GRF87-YVPEJ180M4,GRF87-YVPEJ200M4,GRF87-YVPEJ71M4,GRF87-YVPEJ80M4,GRF87-YVPEJ90M4,RCF87-Y0.37KW,RCF87-Y0.55KW,RCF87-Y0.75KW,RCF87-Y1.1KW,RCF87-Y1.5KW,RCF87-Y100M4,RCF87-Y112M4,RCF87-Y11KW,RCF87-Y132M4,RCF87-Y15KW,RCF87-Y160M4,RCF87-Y18.5KW,RCF87-Y180M4,RCF87-Y2.2KW,RCF87-Y200M4,RCF87-Y22KW,RCF87-Y30KW,RCF87-Y3KW,RCF87-Y4KW,RCF87-Y5.5KW,RCF87-Y7.5KW,RCF87-Y71M4,RCF87-Y80M4,RCF87-Y90M4,RCF87-YEJ100M4,RCF87-YEJ112M4,RCF87-YEJ132M4,RCF87-YEJ160M4,RCF87-YEJ180M4,RCF87-YEJ200M4,RCF87-YEJ71M4,RCF87-YEJ80M4,RCF87-YEJ90M4,RCF87-YS100M4,RCF87-YS112M4,RCF87-YS132M4,RCF87-YS160M4,RCF87-YS180M4,RCF87-YS200M4,RCF87-YS71M4,RCF87-YS80M4,RCF87-YS90M4,RCF87-YVP100M4,RCF87-YVP112M4,RCF87-YVP132M4,RCF87-YVP160M4,RCF87-YVP180M4,RCF87-YVP200M4,RCF87-YVP71M4,RCF87-YVP80M4,RCF87-YVP90M4,RCF87-YVPEJ100M4,RCF87-YVPEJ112M4,RCF87-YVPEJ132M4,RCF87-YVPEJ160M4,RCF87-YVPEJ180M4,RCF87-YVPEJ200M4,RCF87-YVPEJ71M4,RCF87-YVPEJ80M4,RCF87-YVPEJ90M4,MTDF87-Y0.37KW,MTDF87-Y0.55KW,MTDF87-Y0.75KW,MTDF87-Y1.1KW,MTDF87-Y1.5KW,MTDF87-Y100M4,MTDF87-Y112M4,MTDF87-Y11KW,MTDF87-Y132M4,MTDF87-Y15KW,MTDF87-Y160M4,MTDF87-Y18.5KW,MTDF87-Y180M4,MTDF87-Y2.2KW,MTDF87-Y200M4,MTDF87-Y22KW,MTDF87-Y30KW,MTDF87-Y3KW,MTDF87-Y4KW,MTDF87-Y5.5KW,MTDF87-Y7.5KW,MTDF87-Y71M4,MTDF87-Y80M4,MTDF87-Y90M4,MTDF87-YEJ100M4,MTDF87-YEJ112M4,MTDF87-YEJ132M4,MTDF87-YEJ160M4,MTDF87-YEJ180M4,MTDF87-YEJ200M4,MTDF87-YEJ71M4,MTDF87-YEJ80M4,MTDF87-YEJ90M4,MTDF87-YS100M4,MTDF87-YS112M4,MTDF87-YS132M4,MTDF87-YS160M4,MTDF87-YS180M4,MTDF87-YS200M4,MTDF87-YS71M4,MTDF87-YS80M4,MTDF87-YS90M4,MTDF87-YVP100M4,MTDF87-YVP112M4,MTDF87-YVP132M4,MTDF87-YVP160M4,MTDF87-YVP180M4,MTDF87-YVP200M4,MTDF87-YVP71M4,MTDF87-YVP80M4,MTDF87-YVP90M4,MTDF87-YVPEJ100M4,MTDF87-YVPEJ112M4,MTDF87-YVPEJ132M4,MTDF87-YVPEJ160M4,MTDF87-YVPEJ180M4,MTDF87-YVPEJ200M4,MTDF87-YVPEJ71M4,MTDF87-YVPEJ80M4,MTDF87-YVPEJ90M4,WXRF87-WSS0.37KW,WXRF87-WSS0.55KW,WXRF87-WSS0.75KW,WXRF87-WSS1.1KW,WXRF87-WSS1.5KW,WXRF87-WSS100M4,WXRF87-WSS112M4,WXRF87-WSS11KW,WXRF87-WSS132M4,WXRF87-WSS15KW,WXRF87-WSS160M4,WXRF87-WSS18.5KW,WXRF87-WSS180M4,WXRF87-WSS2.2KW,WXRF87-WSS200M4,WXRF87-WSS22KW,WXRF87-WSS30KW,WXRF87-WSS3KW,WXRF87-WSS4KW,WXRF87-WSS5.5KW,WXRF87-WSS7.5KW,WXRF87-WSS71M4,WXRF87-WSS80M4,WXRF87-WSS90M4,WXRF87-WSSB100M4,WXRF87-WSSB112M4,WXRF87-WSSB132M4,WXRF87-WSSB160M4,WXRF87-WSSB180M4,WXRF87-WSSB200M4,WXRF87-WSSB71M4,WXRF87-WSSB80M4,WXRF87-WSSB90M4,WXRF87-WSSVP100M4,WXRF87-WSSVP112M4,WXRF87-WSSVP132M4,WXRF87-WSSVP160M4,WXRF87-WSSVP180M4,WXRF87-WSSVP200M4,WXRF87-WSSVP71M4,WXRF87-WSSVP80M4,WXRF87-WSSVP90M4,WXRF87-WSSVPB100M4,WXRF87-WSSVPB112M4,WXRF87-WSSVPB132M4,WXRF87-WSSVPB160M4,WXRF87-WSSVPB180M4,WXRF87-WSSVPB200M4,WXRF87-WSSVPB71M4,WXRF87-WSSVPB80M4,WXRF87-WSSVPB90M4。

RF87減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.kingco-glaze.com/product/list-rfxiliejiansuji-cn.html

推薦類似型號：R87減速機
