RX57減速機重量：RX57減速機重量8公斤，RX57減速機與電機重量分別如下：

RX57減速機與0.12KW電機重量13.5公斤,RX57減速機與0.18KW電機重量14公斤,RX57減速機與0.25KW電機重量18公斤,RX57減速機與0.37KW電機重量18.5公斤,RX57減速機與0.55KW電機重量23公斤,RX57減速機與0.75KW電機重量24公斤,RX57減速機與1.1KW電機重量28公斤,RX57減速機與1.5KW電機重量31公斤,RX57減速機與2.2KW電機重量40公斤,RX57減速機與3KW電機重量43公斤,RX57減速機與4KW電機重量54公斤,RX57減速機與5.5KW電機重量68公斤,RX57減速機與7.5KW電機重量81公斤。齒輪減速機

RX57減速機加油量：可加齒輪油

RX57減速機M3安裝加1.3L，RX57減速機M2安裝加0.8L，RX57減速機M1安裝加0.6L，RX57減速機M4安裝加1.3L，RX57減速機M5安裝加0.9L，RX57減速機M6安裝加0.9L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。同軸減速機

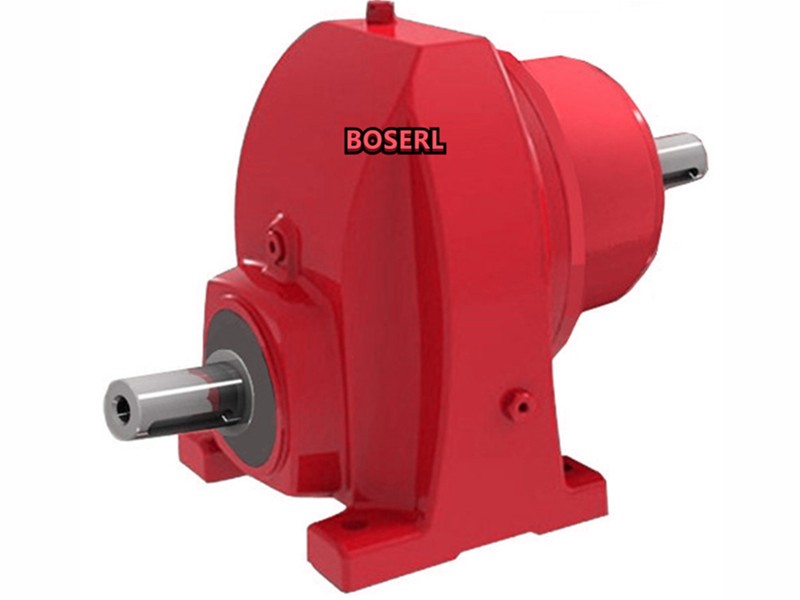

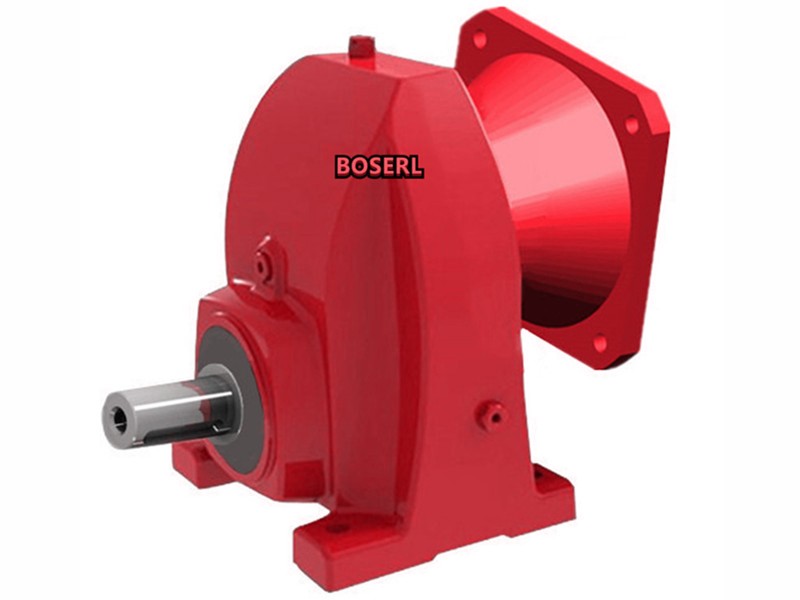

RX57減速機實物圖：圖一為RX57減速機不同心臥式底腳安裝，圖二為R57底腳安裝斜齒輪減速機，圖三為RF57法蘭立式安裝斜齒輪減速機，圖四為RXF57減速機不同心立式法蘭安裝。

RX57減速機型號表示方法：

RX57減速機型號結構RX57-B3KW-4P-減速比-安裝方式-接線盒位置。電機減速機一體機

RX57減速機性能參數表結構說明：Nm代表輸出扭矩，1/min代表輸出轉數，KW代表電機功率，i代表減速比，N代表徑向負荷，K代表服務系數，Frame size代表基座規格，Input Configuration代表輸入與置。

RX57減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

RX57減速機參數：RX57減速機輸出轉速176rpm,255rpm,322rpm,369rpm,394rpm,446rpm,481rpm,530rpm,591rpm,686rpm,729rpm,848rpm,946rpm,1075rpm。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

RX57減速機電機可與伺服、剎車、變頻、防爆、交流、直流、三相、單相電機RX57與0.12KW,RX57與0.25KW,RX57與0.37KW,RX57與0.55KW,RX57與0.75KW,RX57與1.1KW,RX57與1.5KW,RX57與2.2KW,RX57與3KW,RX57與4KW,RX57與5.5KW,RX57與7.5KW。

RX57減速機減速比1:1.3,1:1.48,1:1.65,1:1.92,1:2.04,1:2.37,1:2.64,1:2.91,1:3.14,1:3.55,1:3.79,1:4.35,1:5.07,1:5.5。

RX57減速機負載扭矩36Nm,39Nm,63Nm,65Nm,67Nm,68Nm,69Nm。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大使用）

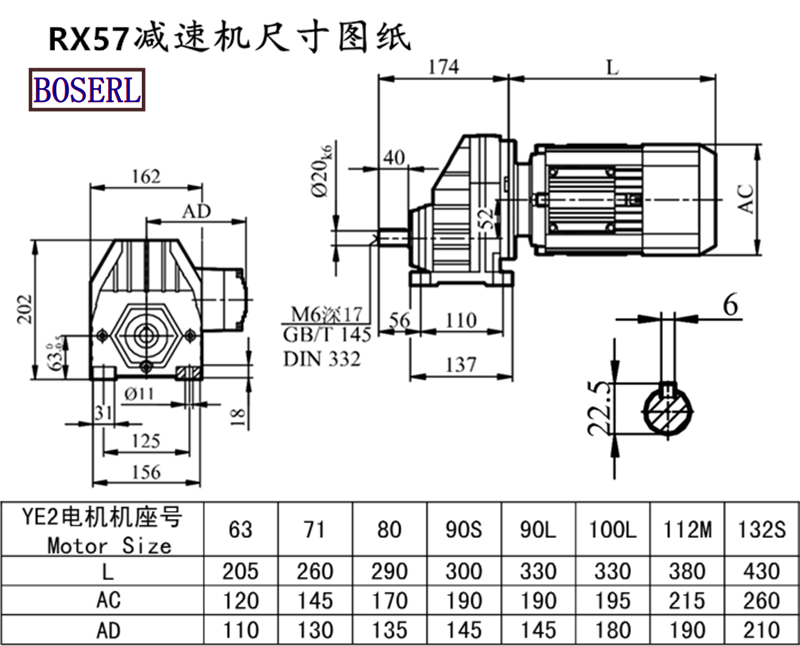

RX57減速機安裝尺寸：高202*寬156*長174（帶輸出軸）

RX57減速機型號：RX57AQA80,RX57AQA100,RX57AQA115,RX57AQA140,RX57AQA160,RX57AQA190,RX57AQH80,RX57AQH100,RX57AQH115,RX57AQH140,RX57AQH160,RX57AQH190,JRTRX57-Y0.12KW,JRTRX57-Y0.18KW,JRTRX57-Y0.25KW,JRTRX57-Y0.37KW,JRTRX57-Y0.55KW,JRTRX57-Y0.75KW,JRTRX57-Y1.1KW,JRTRX57-Y1.5KW,JRTRX57-Y100M4,JRTRX57-Y112M4,JRTRX57-Y132M4,JRTRX57-Y2.2KW,JRTRX57-Y3KW,JRTRX57-Y4KW,JRTRX57-Y5.5KW,JRTRX57-Y63M4,JRTRX57-Y7.5KW,JRTRX57-Y71M4,JRTRX57-Y80M4,JRTRX57-Y90M4,JRTRX57-YEJ100M4,JRTRX57-YEJ112M4,JRTRX57-YEJ132M4,JRTRX57-YEJ63M4,JRTRX57-YEJ71M4,JRTRX57-YEJ80M4,JRTRX57-YEJ90M4,JRTRX57-YS100M4,JRTRX57-YS112M4,JRTRX57-YS132M4,JRTRX57-YS63M4,JRTRX57-YS71M4,JRTRX57-YS80M4,JRTRX57-YS90M4,JRTRX57-YVP100M4,JRTRX57-YVP112M4,JRTRX57-YVP132M4,JRTRX57-YVP63M4,JRTRX57-YVP71M4,JRTRX57-YVP80M4,JRTRX57-YVP90M4,JRTRX57-YVPEJ100M4,JRTRX57-YVPEJ112M4,JRTRX57-YVPEJ132M4,JRTRX57-YVPEJ63M4,JRTRX57-YVPEJ71M4,JRTRX57-YVPEJ80M4,JRTRX57-YVPEJ90M4,EWRX57-Y0.12KW,EWRX57-Y0.18KW,EWRX57-Y0.25KW,EWRX57-Y0.37KW,EWRX57-Y0.55KW,EWRX57-Y0.75KW,EWRX57-Y1.1KW,EWRX57-Y1.5KW,EWRX57-Y100M4,EWRX57-Y112M4,EWRX57-Y132M4,EWRX57-Y2.2KW,EWRX57-Y3KW,EWRX57-Y4KW,EWRX57-Y5.5KW,EWRX57-Y63M4,EWRX57-Y7.5KW,EWRX57-Y71M4,EWRX57-Y80M4,EWRX57-Y90M4,EWRX57-YEJ100M4,EWRX57-YEJ112M4,EWRX57-YEJ132M4,EWRX57-YEJ63M4,EWRX57-YEJ71M4,EWRX57-YEJ80M4,EWRX57-YEJ90M4,EWRX57-YS100M4,EWRX57-YS112M4,EWRX57-YS132M4,EWRX57-YS63M4,EWRX57-YS71M4,EWRX57-YS80M4,EWRX57-YS90M4,EWRX57-YVP100M4,EWRX57-YVP112M4,EWRX57-YVP132M4,EWRX57-YVP63M4,EWRX57-YVP71M4,EWRX57-YVP80M4,EWRX57-YVP90M4,EWRX57-YVPEJ100M4,EWRX57-YVPEJ112M4,EWRX57-YVPEJ132M4,EWRX57-YVPEJ63M4,EWRX57-YVPEJ71M4,EWRX57-YVPEJ80M4,EWRX57-YVPEJ90M4,SLRX57-Y0.12KW,SLRX57-Y0.18KW,SLRX57-Y0.25KW,SLRX57-Y0.37KW,SLRX57-Y0.55KW,SLRX57-Y0.75KW,SLRX57-Y1.1KW,SLRX57-Y1.5KW,SLRX57-Y100M4,SLRX57-Y112M4,SLRX57-Y132M4,SLRX57-Y2.2KW,SLRX57-Y3KW,SLRX57-Y4KW,SLRX57-Y5.5KW,SLRX57-Y63M4,SLRX57-Y7.5KW,SLRX57-Y71M4,SLRX57-Y80M4,SLRX57-Y90M4,SLRX57-YEJ100M4,SLRX57-YEJ112M4,SLRX57-YEJ132M4,SLRX57-YEJ63M4,SLRX57-YEJ71M4,SLRX57-YEJ80M4,SLRX57-YEJ90M4,SLRX57-YS100M4,SLRX57-YS112M4,SLRX57-YS132M4,SLRX57-YS63M4,SLRX57-YS71M4,SLRX57-YS80M4,SLRX57-YS90M4,SLRX57-YVP100M4,SLRX57-YVP112M4,SLRX57-YVP132M4,SLRX57-YVP63M4,SLRX57-YVP71M4,SLRX57-YVP80M4,SLRX57-YVP90M4,SLRX57-YVPEJ100M4,SLRX57-YVPEJ112M4,SLRX57-YVPEJ132M4,SLRX57-YVPEJ63M4,SLRX57-YVPEJ71M4,SLRX57-YVPEJ80M4,SLRX57-YVPEJ90M4,DSZRX57-Y0.12KW,DSZRX57-Y0.18KW,DSZRX57-Y0.25KW,DSZRX57-Y0.37KW,DSZRX57-Y0.55KW,DSZRX57-Y0.75KW,DSZRX57-Y1.1KW,DSZRX57-Y1.5KW,DSZRX57-Y100M4,DSZRX57-Y112M4,DSZRX57-Y132M4,DSZRX57-Y2.2KW,DSZRX57-Y3KW,DSZRX57-Y4KW,DSZRX57-Y5.5KW,DSZRX57-Y63M4,DSZRX57-Y7.5KW,DSZRX57-Y71M4,DSZRX57-Y80M4,DSZRX57-Y90M4,DSZRX57-YEJ100M4,DSZRX57-YEJ112M4,DSZRX57-YEJ132M4,DSZRX57-YEJ63M4,DSZRX57-YEJ71M4,DSZRX57-YEJ80M4,DSZRX57-YEJ90M4,DSZRX57-YS100M4,DSZRX57-YS112M4,DSZRX57-YS132M4,DSZRX57-YS63M4,DSZRX57-YS71M4,DSZRX57-YS80M4,DSZRX57-YS90M4,DSZRX57-YVP100M4,DSZRX57-YVP112M4,DSZRX57-YVP132M4,DSZRX57-YVP63M4,DSZRX57-YVP71M4,DSZRX57-YVP80M4,DSZRX57-YVP90M4,DSZRX57-YVPEJ100M4,DSZRX57-YVPEJ112M4,DSZRX57-YVPEJ132M4,DSZRX57-YVPEJ63M4,DSZRX57-YVPEJ71M4,DSZRX57-YVPEJ80M4,DSZRX57-YVPEJ90M4,BRX57-Y0.12KW,BRX57-Y0.18KW,BRX57-Y0.25KW,BRX57-Y0.37KW,BRX57-Y0.55KW,BRX57-Y0.75KW,BRX57-Y1.1KW,BRX57-Y1.5KW,BRX57-Y100M4,BRX57-Y112M4,BRX57-Y132M4,BRX57-Y2.2KW,BRX57-Y3KW,BRX57-Y4KW,BRX57-Y5.5KW,BRX57-Y63M4,BRX57-Y7.5KW,BRX57-Y71M4,BRX57-Y80M4,BRX57-Y90M4,BRX57-YEJ100M4,BRX57-YEJ112M4,BRX57-YEJ132M4,BRX57-YEJ63M4,BRX57-YEJ71M4,BRX57-YEJ80M4,BRX57-YEJ90M4,BRX57-YS100M4,BRX57-YS112M4,BRX57-YS132M4,BRX57-YS63M4,BRX57-YS71M4,BRX57-YS80M4,BRX57-YS90M4,BRX57-YVP100M4,BRX57-YVP112M4,BRX57-YVP132M4,BRX57-YVP63M4,BRX57-YVP71M4,BRX57-YVP80M4,BRX57-YVP90M4,BRX57-YVPEJ100M4,BRX57-YVPEJ112M4,BRX57-YVPEJ132M4,BRX57-YVPEJ63M4,BRX57-YVPEJ71M4,BRX57-YVPEJ80M4,BRX57-YVPEJ90M4,GRX57-Y0.12KW,GRX57-Y0.18KW,GRX57-Y0.25KW,GRX57-Y0.37KW,GRX57-Y0.55KW,GRX57-Y0.75KW,GRX57-Y1.1KW,GRX57-Y1.5KW,GRX57-Y100M4,GRX57-Y112M4,GRX57-Y132M4,GRX57-Y2.2KW,GRX57-Y3KW,GRX57-Y4KW,GRX57-Y5.5KW,GRX57-Y63M4,GRX57-Y7.5KW,GRX57-Y71M4,GRX57-Y80M4,GRX57-Y90M4,GRX57-YEJ100M4,GRX57-YEJ112M4,GRX57-YEJ132M4,GRX57-YEJ63M4,GRX57-YEJ71M4,GRX57-YEJ80M4,GRX57-YEJ90M4,GRX57-YS100M4,GRX57-YS112M4,GRX57-YS132M4,GRX57-YS63M4,GRX57-YS71M4,GRX57-YS80M4,GRX57-YS90M4,GRX57-YVP100M4,GRX57-YVP112M4,GRX57-YVP132M4,GRX57-YVP63M4,GRX57-YVP71M4,GRX57-YVP80M4,GRX57-YVP90M4,GRX57-YVPEJ100M4,GRX57-YVPEJ112M4,GRX57-YVPEJ132M4,GRX57-YVPEJ63M4,GRX57-YVPEJ71M4,GRX57-YVPEJ80M4,GRX57-YVPEJ90M4,RCX57-Y0.12KW,RCX57-Y0.18KW,RCX57-Y0.25KW,RCX57-Y0.37KW,RCX57-Y0.55KW,RCX57-Y0.75KW,RCX57-Y1.1KW,RCX57-Y1.5KW,RCX57-Y100M4,RCX57-Y112M4,RCX57-Y132M4,RCX57-Y2.2KW,RCX57-Y3KW,RCX57-Y4KW,RCX57-Y5.5KW,RCX57-Y63M4,RCX57-Y7.5KW,RCX57-Y71M4,RCX57-Y80M4,RCX57-Y90M4,RCX57-YEJ100M4,RCX57-YEJ112M4,RCX57-YEJ132M4,RCX57-YEJ63M4,RCX57-YEJ71M4,RCX57-YEJ80M4,RCX57-YEJ90M4,RCX57-YS100M4,RCX57-YS112M4,RCX57-YS132M4,RCX57-YS63M4,RCX57-YS71M4,RCX57-YS80M4,RCX57-YS90M4,RCX57-YVP100M4,RCX57-YVP112M4,RCX57-YVP132M4,RCX57-YVP63M4,RCX57-YVP71M4,RCX57-YVP80M4,RCX57-YVP90M4,RCX57-YVPEJ100M4,RCX57-YVPEJ112M4,RCX57-YVPEJ132M4,RCX57-YVPEJ63M4,RCX57-YVPEJ71M4,RCX57-YVPEJ80M4,RCX57-YVPEJ90M4,MTDX57-Y0.12KW,MTDX57-Y0.18KW,MTDX57-Y0.25KW,MTDX57-Y0.37KW,MTDX57-Y0.55KW,MTDX57-Y0.75KW,MTDX57-Y1.1KW,MTDX57-Y1.5KW,MTDX57-Y100M4,MTDX57-Y112M4,MTDX57-Y132M4,MTDX57-Y2.2KW,MTDX57-Y3KW,MTDX57-Y4KW,MTDX57-Y5.5KW,MTDX57-Y63M4,MTDX57-Y7.5KW,MTDX57-Y71M4,MTDX57-Y80M4,MTDX57-Y90M4,MTDX57-YEJ100M4,MTDX57-YEJ112M4,MTDX57-YEJ132M4,MTDX57-YEJ63M4,MTDX57-YEJ71M4,MTDX57-YEJ80M4,MTDX57-YEJ90M4,MTDX57-YS100M4,MTDX57-YS112M4,MTDX57-YS132M4,MTDX57-YS63M4,MTDX57-YS71M4,MTDX57-YS80M4,MTDX57-YS90M4,MTDX57-YVP100M4,MTDX57-YVP112M4,MTDX57-YVP132M4,MTDX57-YVP63M4,MTDX57-YVP71M4,MTDX57-YVP80M4,MTDX57-YVP90M4,MTDX57-YVPEJ100M4,MTDX57-YVPEJ112M4,MTDX57-YVPEJ132M4,MTDX57-YVPEJ63M4,MTDX57-YVPEJ71M4,MTDX57-YVPEJ80M4,MTDX57-YVPEJ90M4,WXRX57-WSS0.12KW,WXRX57-WSS0.18KW,WXRX57-WSS0.25KW,WXRX57-WSS0.37KW,WXRX57-WSS0.55KW,WXRX57-WSS0.75KW,WXRX57-WSS1.1KW,WXRX57-WSS1.5KW,WXRX57-WSS100M4,WXRX57-WSS112M4,WXRX57-WSS132M4,WXRX57-WSS2.2KW,WXRX57-WSS3KW,WXRX57-WSS4KW,WXRX57-WSS5.5KW,WXRX57-WSS63M4,WXRX57-WSS7.5KW,WXRX57-WSS71M4,WXRX57-WSS80M4,WXRX57-WSS90M4,WXRX57-WSSB100M4,WXRX57-WSSB112M4,WXRX57-WSSB132M4,WXRX57-WSSB63M4,WXRX57-WSSB71M4,WXRX57-WSSB80M4,WXRX57-WSSB90M4,WXRX57-WSSVP100M4,WXRX57-WSSVP112M4,WXRX57-WSSVP132M4,WXRX57-WSSVP63M4。

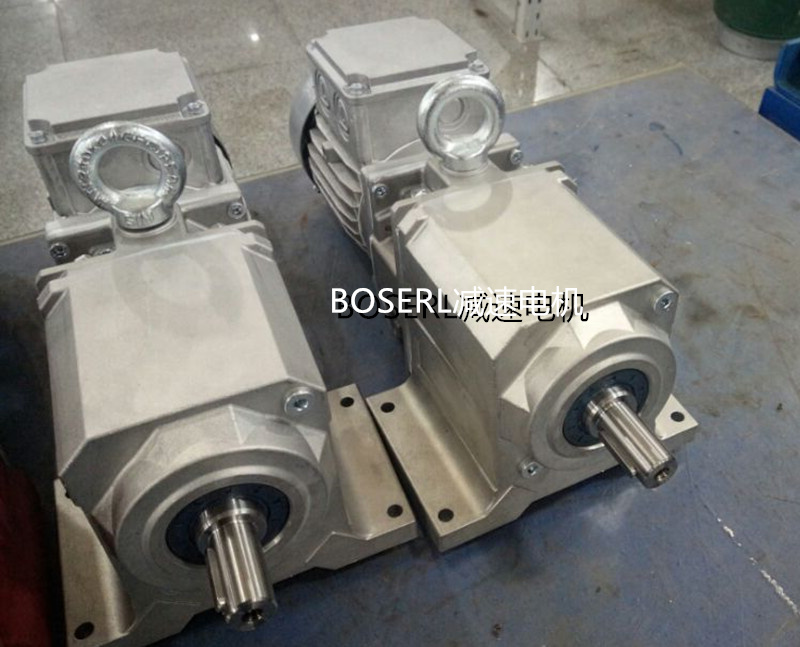

RX57減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.kingco-glaze.com/product/list-rxxiliejiansuji-cn.html
