RX67減速機重量：RX67減速機重量14公斤，RX67減速機與電機重量分別如下：

RX67減速機與0.12KW電機重量19.5公斤,RX67減速機與0.18KW電機重量20公斤,RX67減速機與0.25KW電機重量24公斤,RX67減速機與0.37KW電機重量24.5公斤,RX67減速機與0.55KW電機重量29公斤,RX67減速機與0.75KW電機重量30公斤,RX67減速機與1.1KW電機重量34公斤,RX67減速機與1.5KW電機重量37公斤,RX67減速機與2.2KW電機重量46公斤,RX67減速機與3KW電機重量49公斤,RX67減速機與4KW電機重量60公斤,RX67減速機與5.5KW電機重量74公斤,RX67減速機與7.5KW電機重量87公斤。齒輪減速機

RX67減速機加油量：可加齒輪油

RX67減速機M3安裝加1.7L，RX67減速機M2安裝加0.8L，RX67減速機M1安裝加0.8L，RX67減速機M4安裝加1.9L，RX67減速機M5安裝加1.1L，RX67減速機M6安裝加1.1L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。同軸減速機

RX67減速機實物圖：圖一為RX67減速機不同心臥式底腳安裝，圖二為R67底腳安裝斜齒輪減速機，圖三為RF67法蘭立式安裝斜齒輪減速機，圖四為RXF67減速機不同心立式法蘭安裝。

RX67減速機型號表示方法：

RX67減速機型號結構RX67-B4KW-4P-減速比-安裝方式-接線盒位置。

RX67減速機性能參數表結構說明：Nm代表輸出扭矩，1/min代表輸出轉數，KW代表電機功率，i代表減速比，N代表徑向負荷，K代表服務系數，Frame size代表基座規格，Input Configuration代表輸入與置。電機減速機一體機

RX67減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

RX67減速機參數：

RX67減速機輸出轉速231rpm,270rpm,309rpm,326rpm,371rpm,438rpm,484rpm,551rpm,583rpm,686rpm,753rpm,870rpm,1000rpm。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

RX67減速機電機可與伺服、剎車、變頻、防爆、交流、直流、三相、單相電機RX67與0.12KW,RX67與0.18KW,RX67與0.25KW,RX67與0.37KW,RX67與0.55KW,RX67與0.75KW,RX67與1.1KW,RX67與1.5KW,RX67與2.2KW,RX67與3KW,RX67與4KW,RX67與5.5KW,RX67與7.5KW。

RX67減速機減速比1:1.4,1:1.61,1:1.86,1:2.04,1:2.4,1:2.54,1:2.89,1:3.2,1:3.77,1:4.3,1:4.53,1:5.18,1:6.07。

RX67減速機負載扭矩43Nm,75Nm,80Nm,82Nm,87Nm,100Nm,104Nm,106Nm,114Nm,118Nm,123Nm,126Nm,134Nm。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大使用）

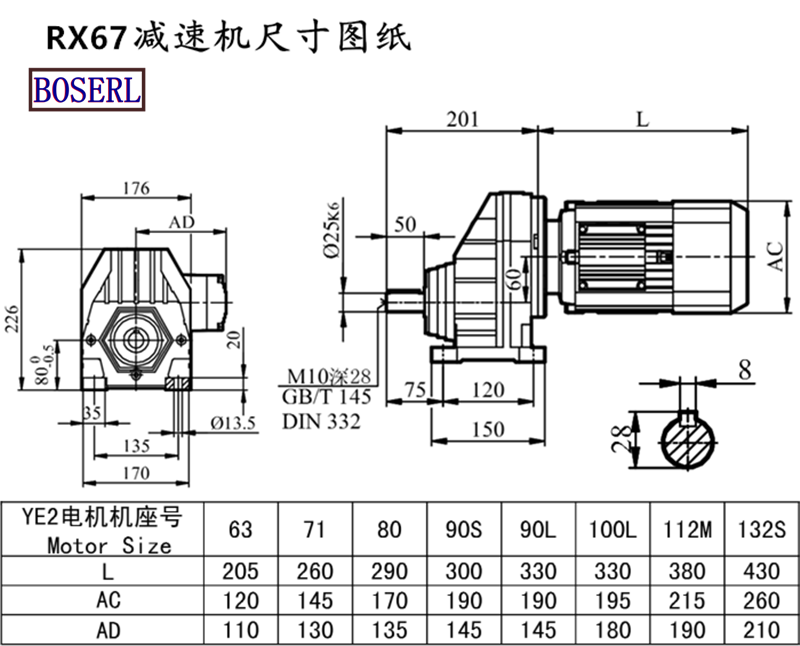

RX67減速機安裝尺寸：高226*寬170*長201（帶輸出軸）

RX67減速機型號：RX67AQA80,RX67AQA100,RX67AQA115,RX67AQA140,RX67AQA160,RX67AQA190,RX67AQH80,RX67AQH100,RX67AQH115,RX67AQH140,RX67AQH160,RX67AQH190,JRTRX67-Y0.12KW,JRTRX67-Y0.18KW,JRTRX67-Y0.25KW,JRTRX67-Y0.37KW,JRTRX67-Y0.55KW,JRTRX67-Y0.75KW,JRTRX67-Y1.1KW,JRTRX67-Y1.5KW,JRTRX67-Y100M4,JRTRX67-Y112M4,JRTRX67-Y132M4,JRTRX67-Y2.2KW,JRTRX67-Y3KW,JRTRX67-Y4KW,JRTRX67-Y5.5KW,JRTRX67-Y63M4,JRTRX67-Y7.5KW,JRTRX67-Y71M4,JRTRX67-Y80M4,JRTRX67-Y90M4,JRTRX67-YEJ100M4,JRTRX67-YEJ112M4,JRTRX67-YEJ132M4,JRTRX67-YEJ63M4,JRTRX67-YEJ71M4,JRTRX67-YEJ80M4,JRTRX67-YEJ90M4,JRTRX67-YS100M4,JRTRX67-YS112M4,JRTRX67-YS132M4,JRTRX67-YS63M4,JRTRX67-YS71M4,JRTRX67-YS80M4,JRTRX67-YS90M4,JRTRX67-YVP100M4,JRTRX67-YVP112M4,JRTRX67-YVP132M4,JRTRX67-YVP63M4,JRTRX67-YVP71M4,JRTRX67-YVP80M4,JRTRX67-YVP90M4,JRTRX67-YVPEJ100M4,JRTRX67-YVPEJ112M4,JRTRX67-YVPEJ132M4,JRTRX67-YVPEJ63M4,JRTRX67-YVPEJ71M4,JRTRX67-YVPEJ80M4,JRTRX67-YVPEJ90M4,EWRX67-Y0.12KW,EWRX67-Y0.18KW,EWRX67-Y0.25KW,EWRX67-Y0.37KW,EWRX67-Y0.55KW,EWRX67-Y0.75KW,EWRX67-Y1.1KW,EWRX67-Y1.5KW,EWRX67-Y100M4,EWRX67-Y112M4,EWRX67-Y132M4,EWRX67-Y2.2KW,EWRX67-Y3KW,EWRX67-Y4KW,EWRX67-Y5.5KW,EWRX67-Y63M4,EWRX67-Y7.5KW,EWRX67-Y71M4,EWRX67-Y80M4,EWRX67-Y90M4,EWRX67-YEJ100M4,EWRX67-YEJ112M4,EWRX67-YEJ132M4,EWRX67-YEJ63M4,EWRX67-YEJ71M4,EWRX67-YEJ80M4,EWRX67-YEJ90M4,EWRX67-YS100M4,EWRX67-YS112M4,EWRX67-YS132M4,EWRX67-YS63M4,EWRX67-YS71M4,EWRX67-YS80M4,EWRX67-YS90M4,EWRX67-YVP100M4,EWRX67-YVP112M4,EWRX67-YVP132M4,EWRX67-YVP63M4,EWRX67-YVP71M4,EWRX67-YVP80M4,EWRX67-YVP90M4,EWRX67-YVPEJ100M4,EWRX67-YVPEJ112M4,EWRX67-YVPEJ132M4,EWRX67-YVPEJ63M4,EWRX67-YVPEJ71M4,EWRX67-YVPEJ80M4,EWRX67-YVPEJ90M4,SLRX67-Y0.12KW,SLRX67-Y0.18KW,SLRX67-Y0.25KW,SLRX67-Y0.37KW,SLRX67-Y0.55KW,SLRX67-Y0.75KW,SLRX67-Y1.1KW,SLRX67-Y1.5KW,SLRX67-Y100M4,SLRX67-Y112M4,SLRX67-Y132M4,SLRX67-Y2.2KW,SLRX67-Y3KW,SLRX67-Y4KW,SLRX67-Y5.5KW,SLRX67-Y63M4,SLRX67-Y7.5KW,SLRX67-Y71M4,SLRX67-Y80M4,SLRX67-Y90M4,SLRX67-YEJ100M4,SLRX67-YEJ112M4,SLRX67-YEJ132M4,SLRX67-YEJ63M4,SLRX67-YEJ71M4,SLRX67-YEJ80M4,SLRX67-YEJ90M4,SLRX67-YS100M4,SLRX67-YS112M4,SLRX67-YS132M4,SLRX67-YS63M4,SLRX67-YS71M4,SLRX67-YS80M4,SLRX67-YS90M4,SLRX67-YVP100M4,SLRX67-YVP112M4,SLRX67-YVP132M4,SLRX67-YVP63M4,SLRX67-YVP71M4,SLRX67-YVP80M4,SLRX67-YVP90M4,SLRX67-YVPEJ100M4,SLRX67-YVPEJ112M4,SLRX67-YVPEJ132M4,SLRX67-YVPEJ63M4,SLRX67-YVPEJ71M4,SLRX67-YVPEJ80M4,SLRX67-YVPEJ90M4,DSZRX67-Y0.12KW,DSZRX67-Y0.18KW,DSZRX67-Y0.25KW,DSZRX67-Y0.37KW,DSZRX67-Y0.55KW,DSZRX67-Y0.75KW,DSZRX67-Y1.1KW,DSZRX67-Y1.5KW,DSZRX67-Y100M4,DSZRX67-Y112M4,DSZRX67-Y132M4,DSZRX67-Y2.2KW,DSZRX67-Y3KW,DSZRX67-Y4KW,DSZRX67-Y5.5KW,DSZRX67-Y63M4,DSZRX67-Y7.5KW,DSZRX67-Y71M4,DSZRX67-Y80M4,DSZRX67-Y90M4,DSZRX67-YEJ100M4,DSZRX67-YEJ112M4,DSZRX67-YEJ132M4,DSZRX67-YEJ63M4,DSZRX67-YEJ71M4,DSZRX67-YEJ80M4,DSZRX67-YEJ90M4,DSZRX67-YS100M4,DSZRX67-YS112M4,DSZRX67-YS132M4,DSZRX67-YS63M4,DSZRX67-YS71M4,DSZRX67-YS80M4,DSZRX67-YS90M4,DSZRX67-YVP100M4,DSZRX67-YVP112M4,DSZRX67-YVP132M4,DSZRX67-YVP63M4,DSZRX67-YVP71M4,DSZRX67-YVP80M4,DSZRX67-YVP90M4,DSZRX67-YVPEJ100M4,DSZRX67-YVPEJ112M4,DSZRX67-YVPEJ132M4,DSZRX67-YVPEJ63M4,DSZRX67-YVPEJ71M4,DSZRX67-YVPEJ80M4,DSZRX67-YVPEJ90M4,BRX67-Y0.12KW,BRX67-Y0.18KW,BRX67-Y0.25KW,BRX67-Y0.37KW,BRX67-Y0.55KW,BRX67-Y0.75KW,BRX67-Y1.1KW,BRX67-Y1.5KW,BRX67-Y100M4,BRX67-Y112M4,BRX67-Y132M4,BRX67-Y2.2KW,BRX67-Y3KW,BRX67-Y4KW,BRX67-Y5.5KW,BRX67-Y63M4,BRX67-Y7.5KW,BRX67-Y71M4,BRX67-Y80M4,BRX67-Y90M4,BRX67-YEJ100M4,BRX67-YEJ112M4,BRX67-YEJ132M4,BRX67-YEJ63M4,BRX67-YEJ71M4,BRX67-YEJ80M4,BRX67-YEJ90M4,BRX67-YS100M4,BRX67-YS112M4,BRX67-YS132M4,BRX67-YS63M4,BRX67-YS71M4,BRX67-YS80M4,BRX67-YS90M4,BRX67-YVP100M4,BRX67-YVP112M4,BRX67-YVP132M4,BRX67-YVP63M4,BRX67-YVP71M4,BRX67-YVP80M4,BRX67-YVP90M4,BRX67-YVPEJ100M4,BRX67-YVPEJ112M4,BRX67-YVPEJ132M4,BRX67-YVPEJ63M4,BRX67-YVPEJ71M4,BRX67-YVPEJ80M4,BRX67-YVPEJ90M4,GRX67-Y0.12KW,GRX67-Y0.18KW,GRX67-Y0.25KW,GRX67-Y0.37KW,GRX67-Y0.55KW,GRX67-Y0.75KW,GRX67-Y1.1KW,GRX67-Y1.5KW,GRX67-Y100M4,GRX67-Y112M4,GRX67-Y132M4,GRX67-Y2.2KW,GRX67-Y3KW,GRX67-Y4KW,GRX67-Y5.5KW,GRX67-Y63M4,GRX67-Y7.5KW,GRX67-Y71M4,GRX67-Y80M4,GRX67-Y90M4,GRX67-YEJ100M4,GRX67-YEJ112M4,GRX67-YEJ132M4,GRX67-YEJ63M4,GRX67-YEJ71M4,GRX67-YEJ80M4,GRX67-YEJ90M4,GRX67-YS100M4,GRX67-YS112M4,GRX67-YS132M4,GRX67-YS63M4,GRX67-YS71M4,GRX67-YS80M4,GRX67-YS90M4,GRX67-YVP100M4,GRX67-YVP112M4,GRX67-YVP132M4,GRX67-YVP63M4,GRX67-YVP71M4,GRX67-YVP80M4,GRX67-YVP90M4,GRX67-YVPEJ100M4,GRX67-YVPEJ112M4,GRX67-YVPEJ132M4,GRX67-YVPEJ63M4,GRX67-YVPEJ71M4,GRX67-YVPEJ80M4,GRX67-YVPEJ90M4,RCX67-Y0.12KW,RCX67-Y0.18KW,RCX67-Y0.25KW,RCX67-Y0.37KW,RCX67-Y0.55KW,RCX67-Y0.75KW,RCX67-Y1.1KW,RCX67-Y1.5KW,RCX67-Y100M4,RCX67-Y112M4,RCX67-Y132M4,RCX67-Y2.2KW,RCX67-Y3KW,RCX67-Y4KW,RCX67-Y5.5KW,RCX67-Y63M4,RCX67-Y7.5KW,RCX67-Y71M4,RCX67-Y80M4,RCX67-Y90M4,RCX67-YEJ100M4,RCX67-YEJ112M4,RCX67-YEJ132M4,RCX67-YEJ63M4,RCX67-YEJ71M4,RCX67-YEJ80M4,RCX67-YEJ90M4,RCX67-YS100M4,RCX67-YS112M4,RCX67-YS132M4,RCX67-YS63M4,RCX67-YS71M4,RCX67-YS80M4,RCX67-YS90M4,RCX67-YVP100M4,RCX67-YVP112M4,RCX67-YVP132M4,RCX67-YVP63M4,RCX67-YVP71M4,RCX67-YVP80M4,RCX67-YVP90M4,RCX67-YVPEJ100M4,RCX67-YVPEJ112M4,RCX67-YVPEJ132M4,RCX67-YVPEJ63M4,RCX67-YVPEJ71M4,RCX67-YVPEJ80M4,RCX67-YVPEJ90M4,MTDX67-Y0.12KW,MTDX67-Y0.18KW,MTDX67-Y0.25KW,MTDX67-Y0.37KW,MTDX67-Y0.55KW,MTDX67-Y0.75KW,MTDX67-Y1.1KW,MTDX67-Y1.5KW,MTDX67-Y100M4,MTDX67-Y112M4,MTDX67-Y132M4,MTDX67-Y2.2KW,MTDX67-Y3KW,MTDX67-Y4KW,MTDX67-Y5.5KW,MTDX67-Y63M4,MTDX67-Y7.5KW,MTDX67-Y71M4,MTDX67-Y80M4,MTDX67-Y90M4,MTDX67-YEJ100M4,MTDX67-YEJ112M4,MTDX67-YEJ132M4,MTDX67-YEJ63M4,MTDX67-YEJ71M4,MTDX67-YEJ80M4,MTDX67-YEJ90M4,MTDX67-YS100M4,MTDX67-YS112M4,MTDX67-YS132M4,MTDX67-YS63M4,MTDX67-YS71M4,MTDX67-YS80M4,MTDX67-YS90M4,MTDX67-YVP100M4,MTDX67-YVP112M4,MTDX67-YVP132M4,MTDX67-YVP63M4,MTDX67-YVP71M4,MTDX67-YVP80M4,MTDX67-YVP90M4,MTDX67-YVPEJ100M4,MTDX67-YVPEJ112M4,MTDX67-YVPEJ132M4,MTDX67-YVPEJ63M4,MTDX67-YVPEJ71M4,MTDX67-YVPEJ80M4,MTDX67-YVPEJ90M4,WXRX67-WSS0.12KW,WXRX67-WSS0.18KW,WXRX67-WSS0.25KW,WXRX67-WSS0.37KW,WXRX67-WSS0.55KW,WXRX67-WSS0.75KW,WXRX67-WSS1.1KW,WXRX67-WSS1.5KW,WXRX67-WSS100M4,WXRX67-WSS112M4,WXRX67-WSS132M4,WXRX67-WSS2.2KW,WXRX67-WSS3KW,WXRX67-WSS4KW,WXRX67-WSS5.5KW,WXRX67-WSS63M4,WXRX67-WSS7.5KW,WXRX67-WSS71M4,WXRX67-WSS80M4,WXRX67-WSS90M4,WXRX67-WSSB100M4,WXRX67-WSSB112M4,WXRX67-WSSB132M4,WXRX67-WSSB63M4,WXRX67-WSSB71M4,WXRX67-WSSB80M4,WXRX67-WSSB90M4,WXRX67-WSSVP100M4,WXRX67-WSSVP112M4,WXRX67-WSSVP132M4,WXRX67-WSSVP63M4,WXRX67-WSSVP71M4,WXRX67-WSSVP80M4,WXRX67-WSSVP90M4,WXRX67-WSSVP100M4,WXRX67-WSSVP112M4,WXRX67-WSSVP132M4,WXRX67-WSSVP63M4,WXRX67-WSSVP71M4,WXRX67-WSSVP80M4,WXRX67-WSSVP90M4,WXRX67-WSSVPB100M4,WXRX67-WSSVPB112M4,WXRX67-WSSVPB132M4,WXRX67-WSSVPB63M4,WXRX67-WSSVPB71M4,WXRX67-WSSVPB80M4,WXRX67-WSSVPB90M4。

RX67減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.kingco-glaze.com/product/list-rxxiliejiansuji-cn.html

推薦類似型號：R67減速機
